Meter / Gauge System
>>
Meter & Gauge System
>>
Circuit Figure
Circuit Figure

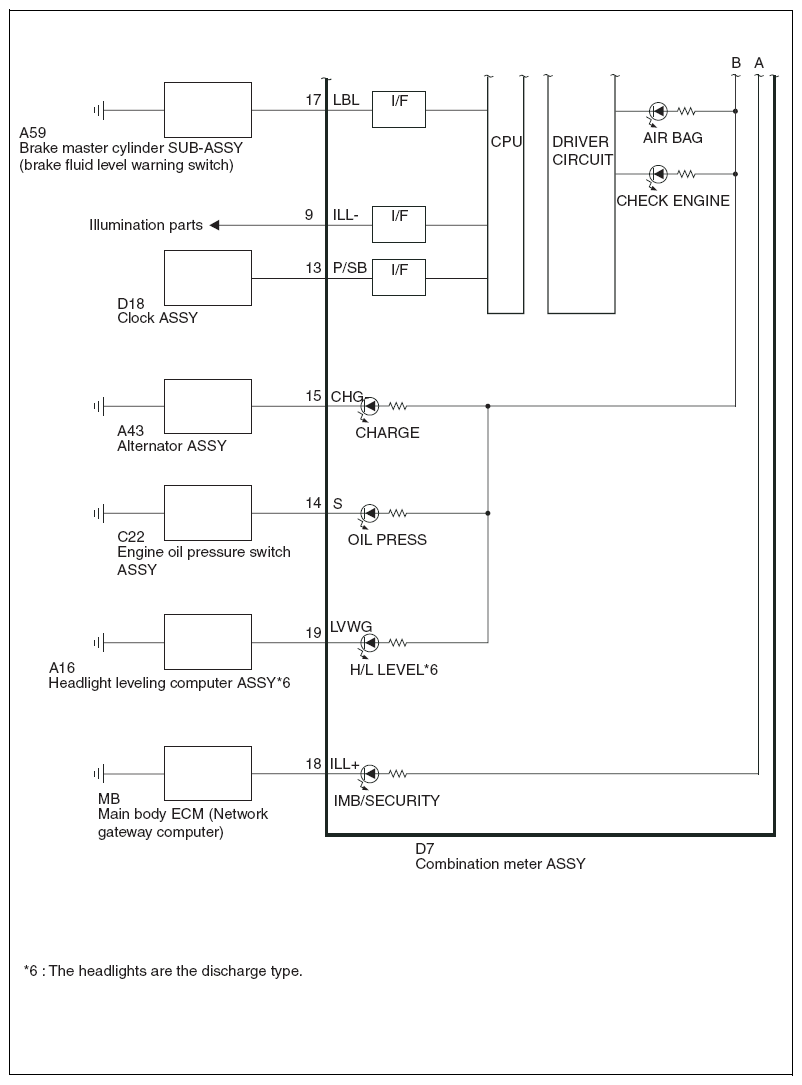

Fig 1: Meter & Gauge System (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

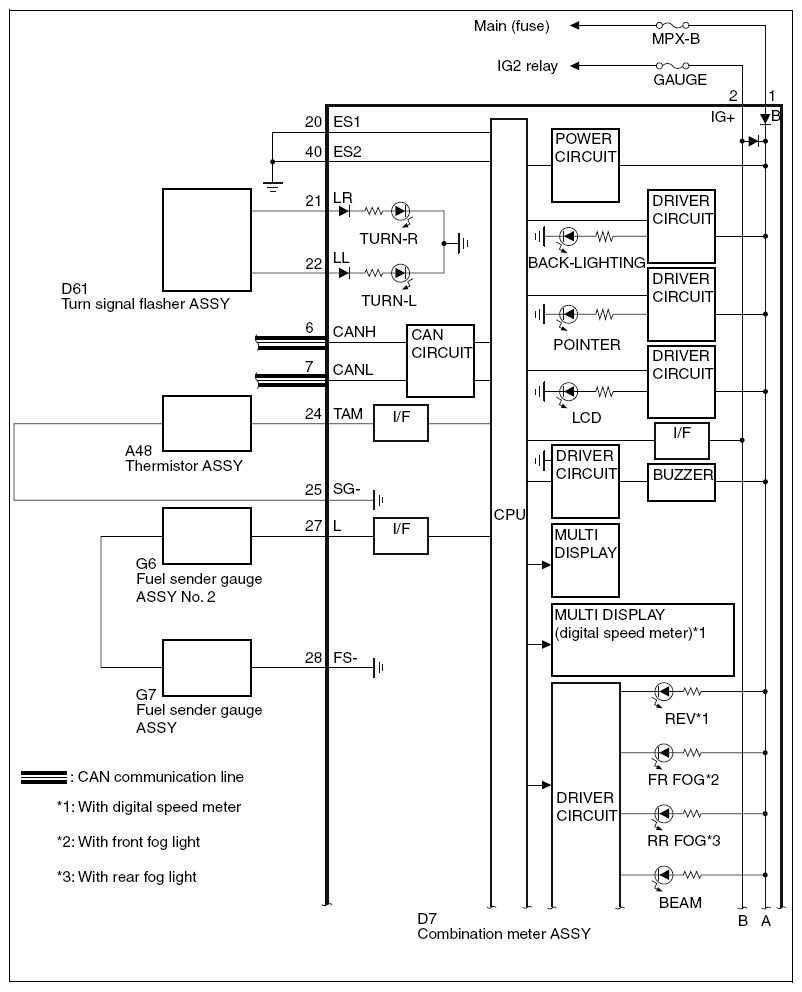

Fig 2: Meter & Gauge System (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

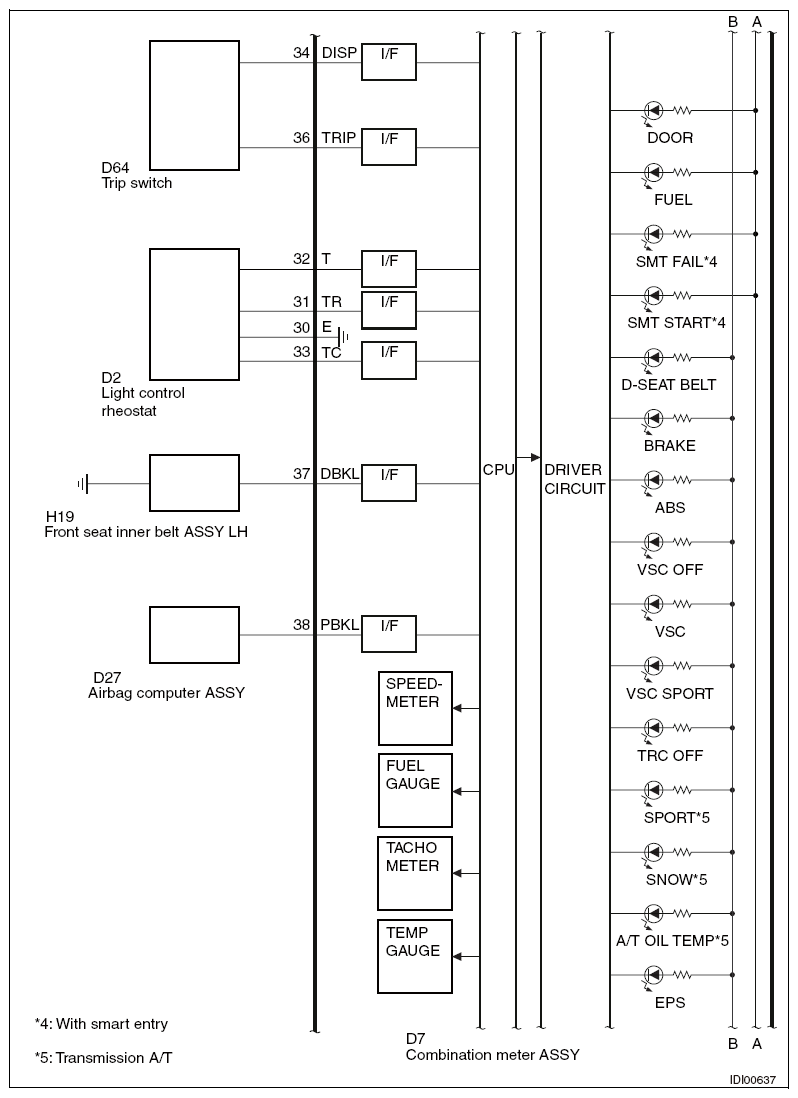

Fig 3: Meter & Gauge System (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
