Removal

Switches and Harness

REMOVAL

BACK-UP LIGHT AND NEUTRAL POSITION SWITCH

1) Disconnect the ground cable from battery.
2) Remove the air intake boot assembly.

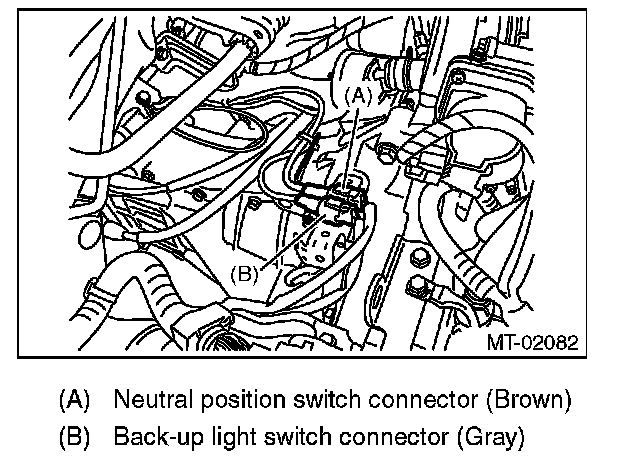

3) Disconnect the connector back-up light switch & neutral position switch.





4) Lift up the vehicle.
5) Remove the back-up light switch & neutral position switch with the harness.
