Sunroof / Moonroof Switch: Testing and Inspection

INSPECTION

1. Remove the overhead console. (Models without EyeSight)
2. Remove the stereo camera cover. (Models with EyeSight)

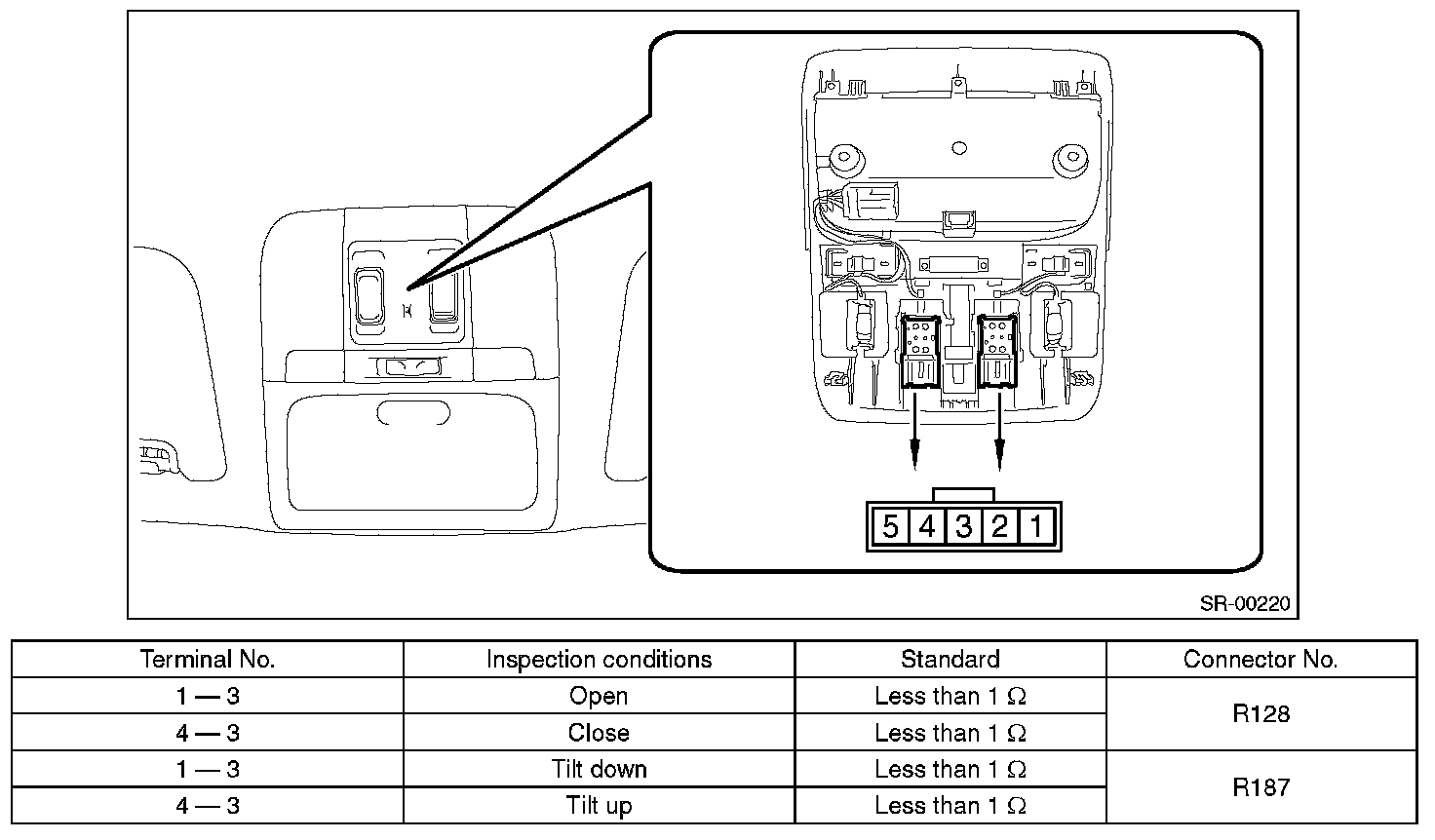

3. Check the resistance between sunroof switch terminals.

Preparation tool: Circuit tester







4. Replace the sunroof switch if the inspection result is not within the standard value.
