Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the overhead console. (Models without EyeSight)
1. Push and open the rear end of the overhead console lid, and remove the screws.
2. Remove the clips and pull out the overhead console to disconnect the connectors.







3. Remove the stereo camera cover. (Models with EyeSight)

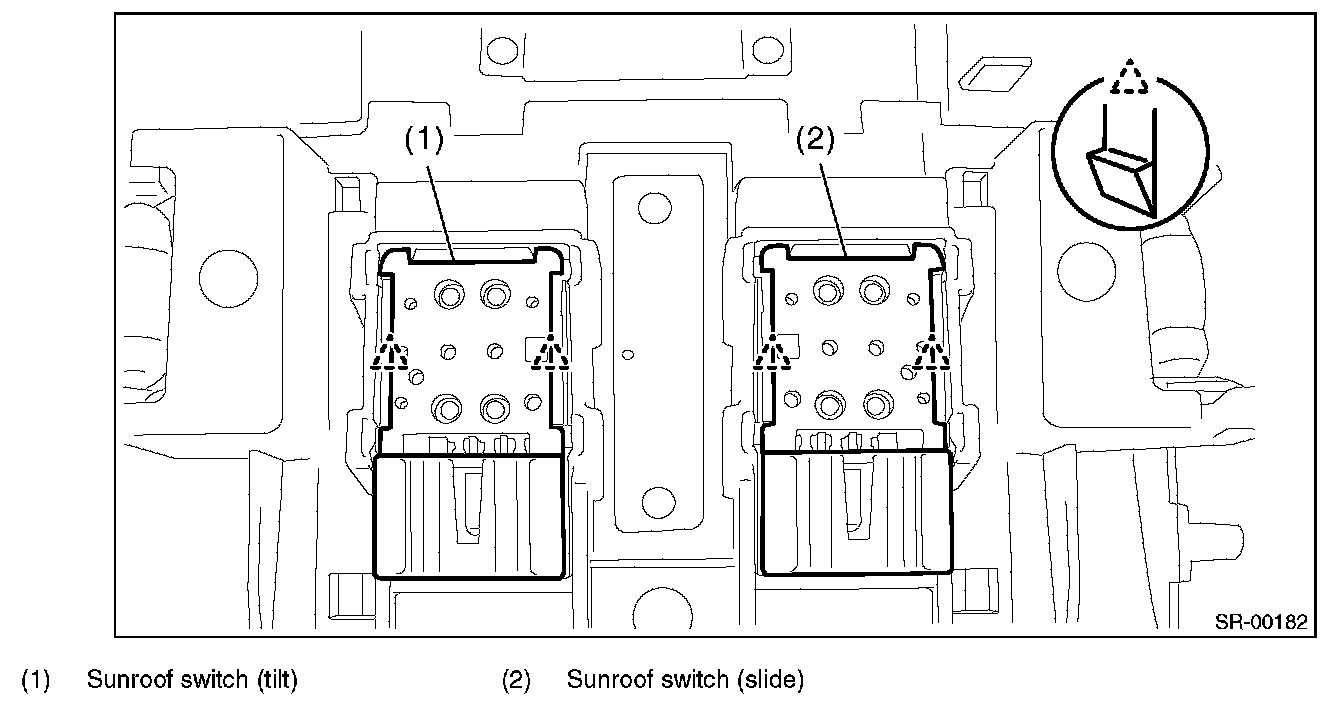

4. Release the claws and remove the sunroof switch from the overhead console.







INSTALLATION

Install each part in the reverse order of removal.
