P1817

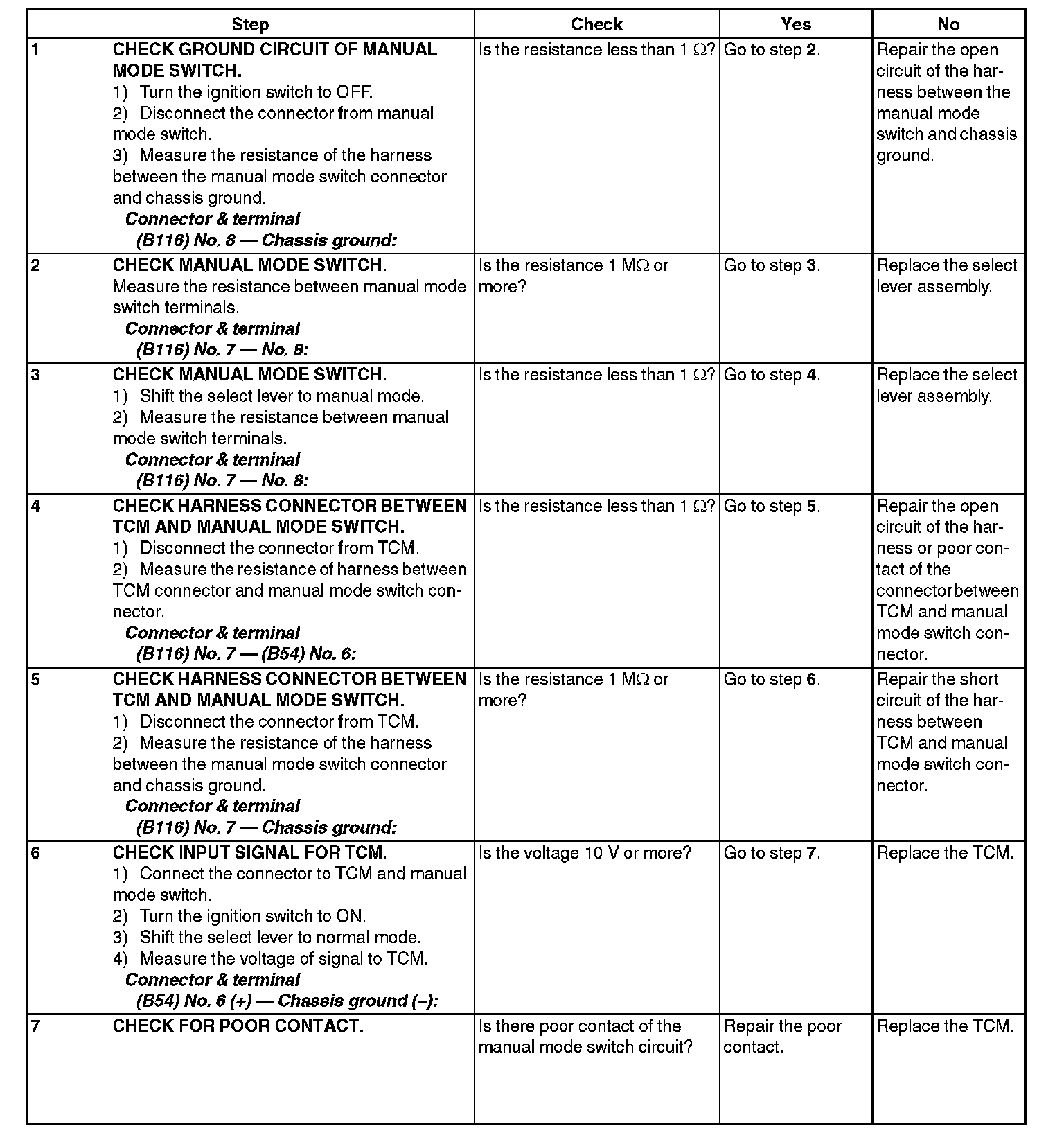

DTC P1817 SPORTS MODE SWITCH CIRCUIT (MANUAL SWITCH)

DTC DETECTING CONDITION:

Input signal circuit of manual mode switch is open or shorted.

TROUBLE SYMPTOM:

^ Manual mode can not be set.
^ Shift indicator displays when shifting "N" to "D".
