CVT (Diag)

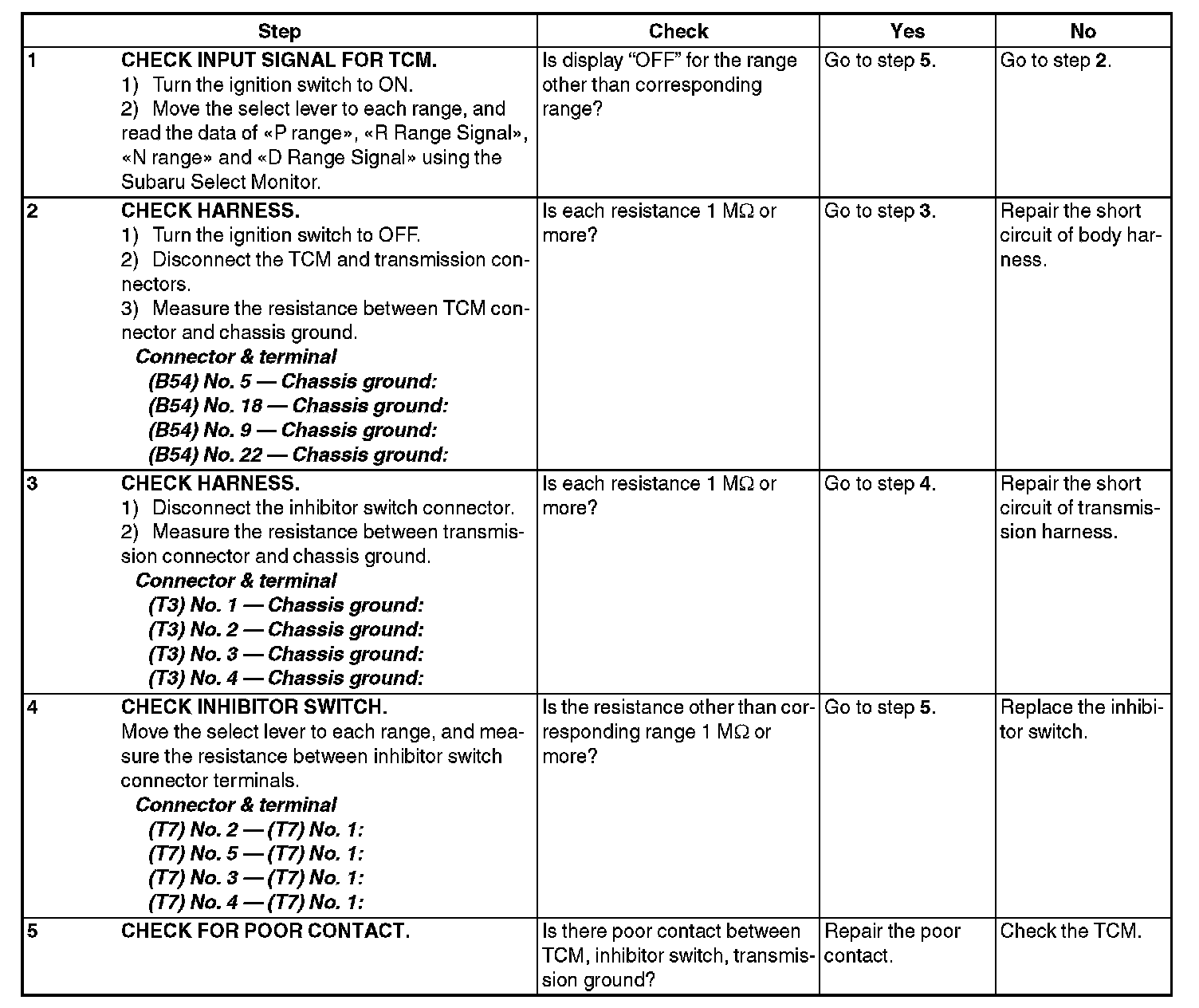

DTC P0705 TRANSMISSION RANGE SENSOR CIRCUIT (PRNDL INPUT)

DTC DETECTING CONDITION:

^ Inhibitor switch is faulty.
^ At least 2 range signal is input.

TROUBLE SYMPTOM:

^ Shift characteristics are erroneous.
^ The range position of the select lever and the position of shift indicator display do not match.
