Hose and Pipe: Removal

CAUTION:
  • When disconnecting hoses, do not apply excessive force.
  • Seal the disconnected hose with a plug or vinyl tape to prevent foreign matter from entering.
  1. Disconnect the ground cable from battery.
  2. Using the refrigerant recovery system, discharge refrigerant. Refer to PROCEDURE .
  3. Remove the bolts and screws and detach the hoses and pipes.

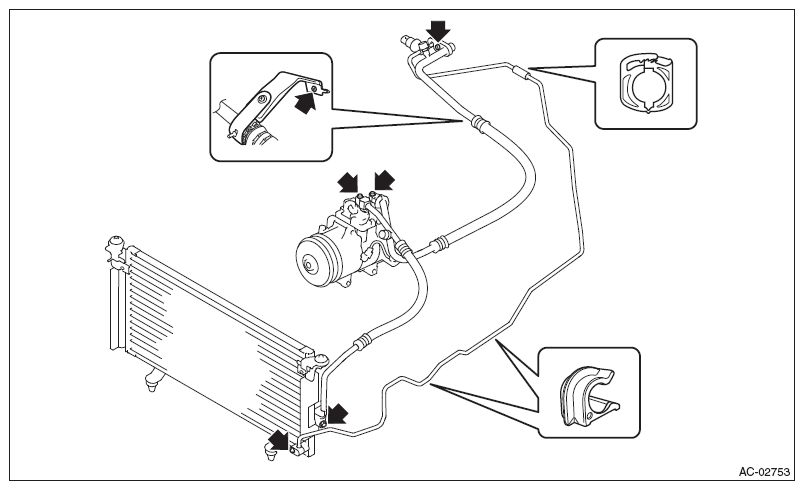

    Fig 1: Locating Hose And Pipe Mounting Bolts
    G08348728Courtesy of SUBARU OF AMERICA, INC.
