Cam Sprocket LH

NOTE: When replacing a single part, perform the work with the engine assembly installed to body.
  1. Remove the chain cover. Refer to REMOVAL .
  2. Remove the timing chain LH. Refer to TIMING CHAIN LH .
  3. Hold the intake cam sprocket LH using the ST1 and ST2, and remove the bolts using the ST3.

    ST1 18355AA000 PULLEY WRENCH

    ST2 18334AA030 PULLEY WRENCH PIN SET

    ST3 18270KA010 SOCKET

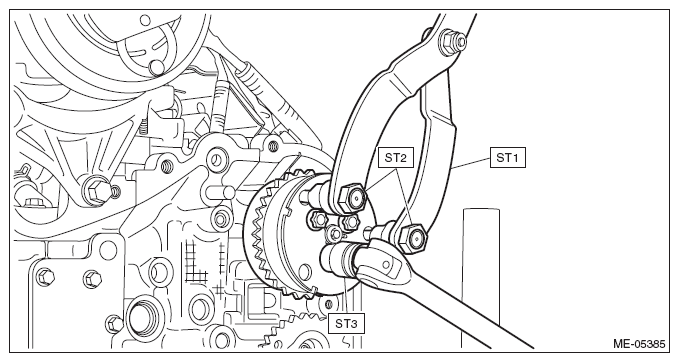

    Fig 1: Removing Intake Cam Sprocket LH Mounting Bolt Using Tools
    G08562998Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake cam sprocket LH.
  1. Remove the chain cover. Refer to REMOVAL .
  2. Remove the timing chain LH. Refer to TIMING CHAIN LH .
  3. Hold the exhaust cam sprocket LH using the ST1 and ST2, and remove the bolts using the ST3.

    ST1 18355AA000 PULLEY WRENCH

    ST2 18334AA020 PULLEY WRENCH PIN SET

    ST3 18270KA010 SOCKET

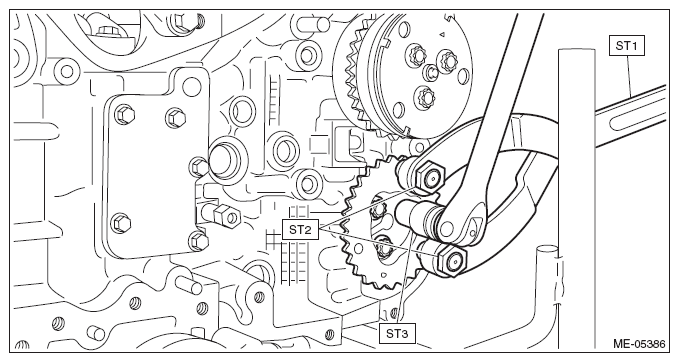

    Fig 2: Removing Exhaust Cam Sprocket LH Mounting Bolt Using Tools
    G08562999Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the exhaust cam sprocket LH.
