Cam Carrier LH

  1. Loosen the bolts (front camshaft cap LH, intake center camshaft cap LH, intake rear camshaft cap LH, exhaust center camshaft cap LH and exhaust rear camshaft cap LH) equally, a little at a time in numerical sequence as shown in the figure, and remove each camshaft cap.
    NOTE: Arrange camshaft caps in order so that they can be installed in their original positions.

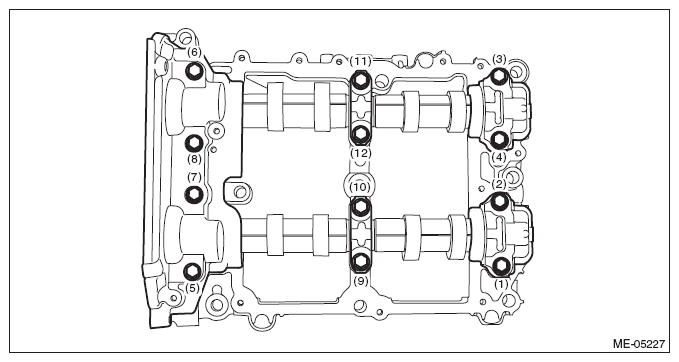

    Fig 1: Identifying Loosening Sequence Of Cam Carrier LH Mounting Bolts
    G08317067Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intake camshaft LH and the exhaust camshaft LH from cam carrier LH.

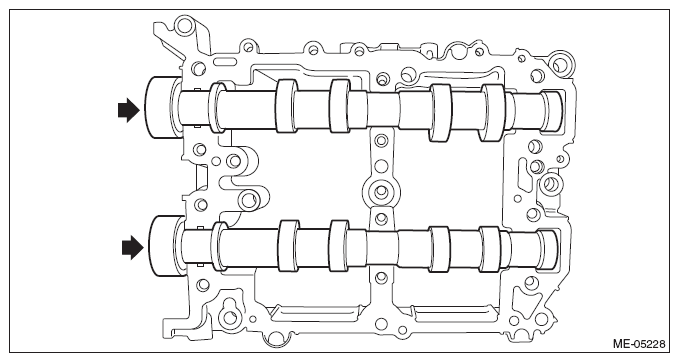

    Fig 2: Locating Intake And Exhaust Camshaft LH
    G08317068Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the filter from cam carrier LH.

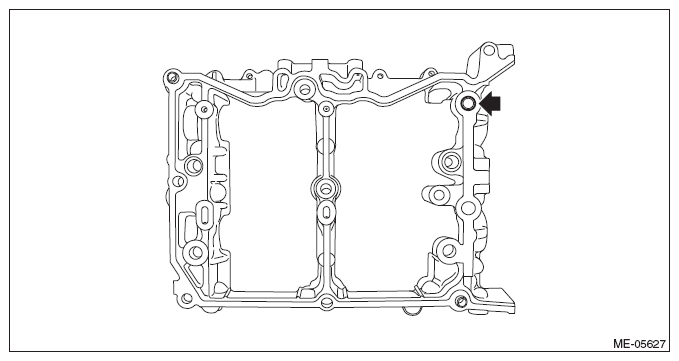

    Fig 3: Locating Cam Carrier LH Filter
    G08580231Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the liquid gasket from cam carrier LH and front camshaft cap LH, intake rear camshaft cap LH and exhaust rear camshaft cap LH.
