Radiator Main Fan and Fan Motor: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the reservoir tank. Refer to REMOVAL .
Disconnect the connector from the main fan motor assembly.

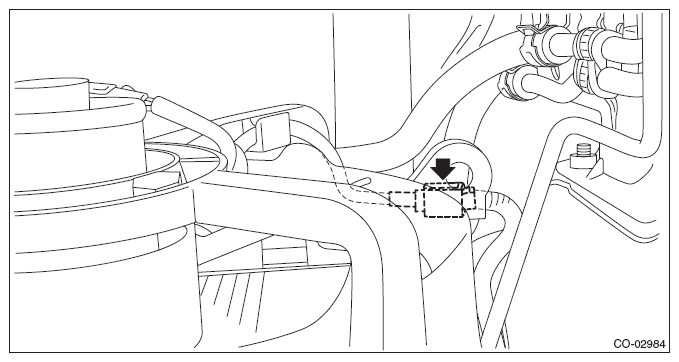

Fig 2: Locating Connector From Main Fan Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF radiator hose from the clip of the radiator main fan shroud. (CVT model)
Remove the bolts which hold the radiator main fan shroud onto the radiator.

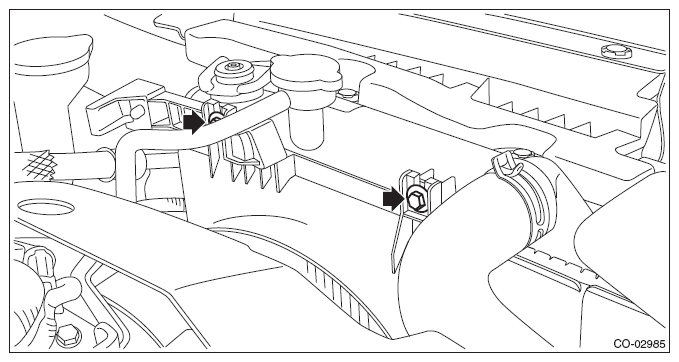

Fig 3: Locating Bolts And Radiator Main Fan Shroud Onto Radiator
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator main fan and fan motor from vehicle.
