V-Belt TENSIONER Assembly And Idler Pulley

Install the idler pulley to the chain cover.
NOTE: When installing the idler pulley, be careful of the idler pulley cover direction.

Fig 1: Identifying Idler Pulley Cover And Protrusion
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)

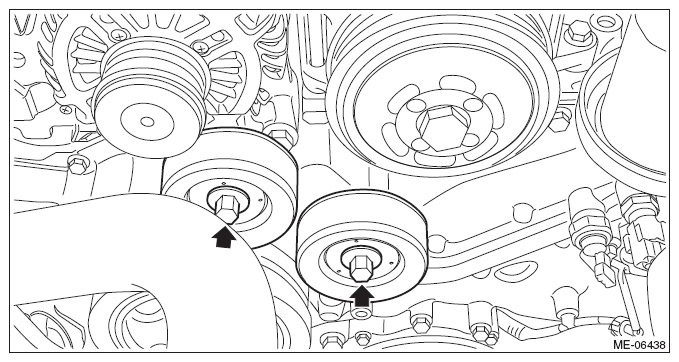

Fig 2: Locating Idler Pulley To Chain Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt tensioner assembly onto the power steering pump bracket.
NOTE: When installing the V-belt tensioner assembly, insert the protrusion of V-belt tensioner assembly into the hole at the power steering pump bracket to prevent rotating.

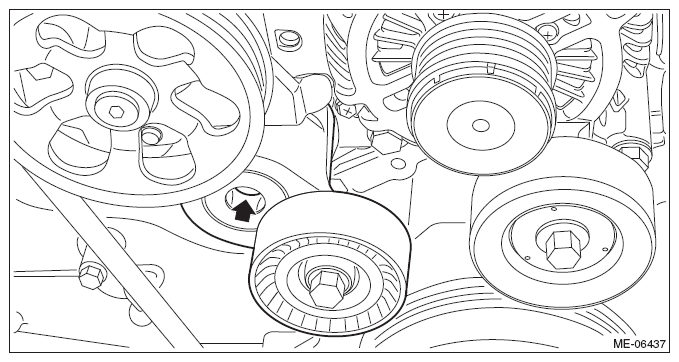

Fig 3: Identifying V-Belt Tensioner Assembly, Hole, Protrusion Portion And Power Steering Bracket
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 4: Locating V-Belt Tensioner Assembly And Idler Pulley
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Refer to V-BELT .
