Rear Wiring Harness and Rear Gate Cord: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
R16	3	(1)	B-3		Rear door switch RH
R22	3	(1)	C-1		Rear door switch LH
R26	4	(1)	C-5		Rear combination light RH
R28	4	(1)	C-2		Rear combination light LH
R32	2	(1)	C-3		Rear accessory power supply socket (cargo room)
R38	16	(1)	B-3	D34	Rear gate cord
R72	2	Light gray	C-3		Rear ABS wheel speed sensor RH
R73	2	Light gray	C-2		Rear ABS wheel speed sensor LH
R79	8	(1)	C-2		Trailer connector
R117	4	(1)	C-4		Woofer
R122	10	(1)	C-4		Fuel pump CM
R221	12	(1)	C-2		TPMS & keyless entry CM (with TPMS) (without push button start)
R296	5	(1)	C-2		Receiver
R330	4	(1)	B-2	R356	Rear gate cord (rearview camera)
R336	4	(1)	C-2		J/C
R345	8	(1)	C-2		Keyless entry CM (without TPMS)
R347	3	(1)	B-3		Luggage room light
R356	4	(1)	B-2	R330	Rear wiring harness
R357	6	(1)	A-3		Rearview camera
R400	8	Gray	D-2		ELCM
R407	1	(1)	B-2		Antenna amplifier
D34	16	(1)	B-3	R38	Rear wiring harness
D39	2	(1)	B-3		High-mounted stop light
D43	4	(1)	A-4		Rear wiper motor
D44	2	(1)	A-4		License plate light
D47	4	(1)	A-4		Rear gate lock actuator & latch switch
D77	6	(1)	A-4		Rear lock button & rear gate opener button & keyless access exterior antenna (rear)
D87	2	(1)	A-5		Rear finisher light RH (back-up light)
D89	2	(1)	A-4		Rear defogger
D91	2	(1)	A-3		Rear finisher light LH (back-up light)
D134	2	(1)	A-3		Rear finisher light LH (tail light)
D139	2	(1)	B-5		Rear finisher light RH (tail light)
AB31	2	Black	C-2		Curtain airbag module LH
AB32	4	Yellow	C-1		Curtain airbag sensor LH
AB33	2	Black	B-4		Curtain airbag module RH
AB34	4	Yellow	C-3		Curtain airbag sensor RH
(1) White or natural color

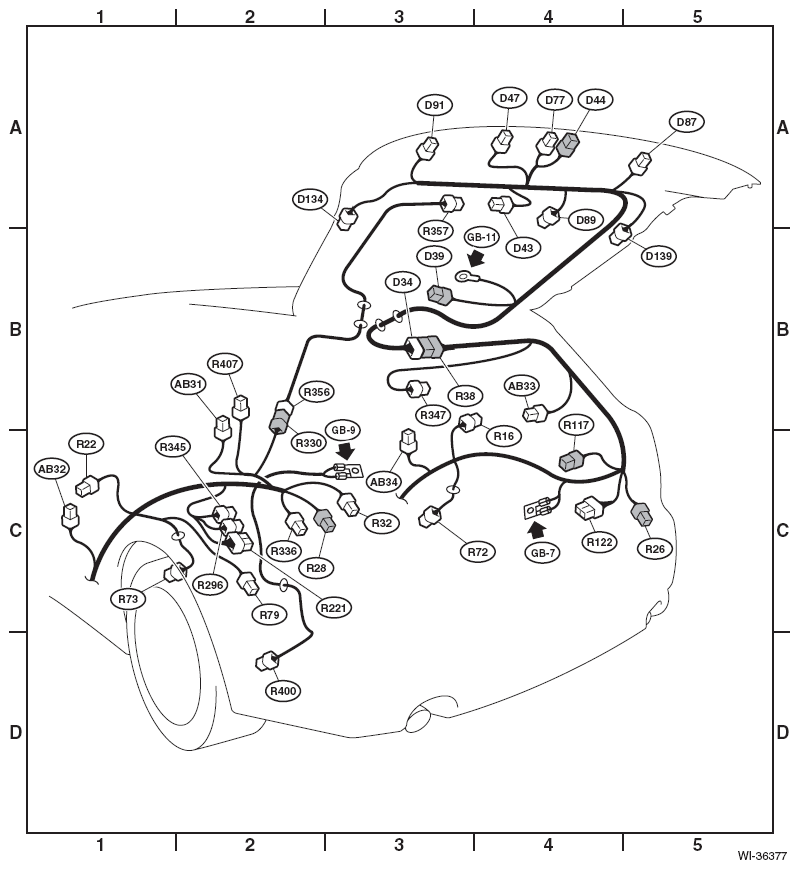

Fig 1: Rear Wiring Harness And Rear Gate Cord Location

Courtesy of SUBARU OF AMERICA, INC.
