Front Door

  1. Disconnect the ground cable from battery.
  2. Remove the front door trim. Refer to FRONT DOOR .
  3. Remove the outer mirror assembly. Refer to REMOVAL .
  4. Remove the sealing cover.
    CAUTION:
    • Carefully remove the butyl tape. Excessive force will easily break the cover.
    • If the sealing cover gets broken, replace it with a new part.
    Fig 1: Removing Sealing Cover
    G05004584Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the front door glass. Refer to REMOVAL .
  6. Remove the glass run rubber.
  7. Release the clips, and remove the inner cover.

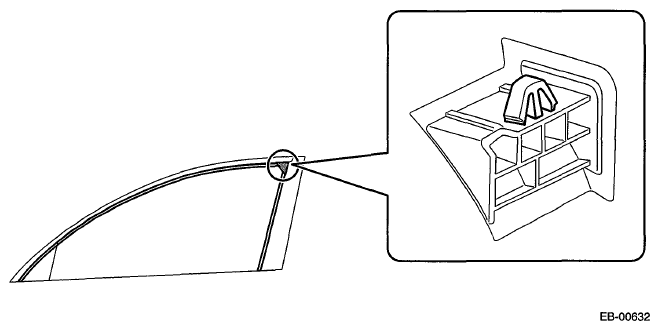

    Fig 2: Identifying Glass Run Rubber Clips
    G06650482Courtesy of SUBARU OF AMERICA, INC.
  8. Detach the inner tape.
    NOTE:
    • If the tape is difficult to detach, warm it by a hot air drier.

      Make sure to use a home use drier. Do not use an industrial use drier.

    • Wipe away any trace of tape adhesive from the door sash.
