Transmission Rear CROSSMEMBER And Rear Cushion Rubber

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe. Refer to REMOVAL .
Remove the center exhaust cover.

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Set the transmission jack under the transmission. Make sure that the support plate of transmission jack does not touch the oil pan.
Remove the transmission rear crossmember.

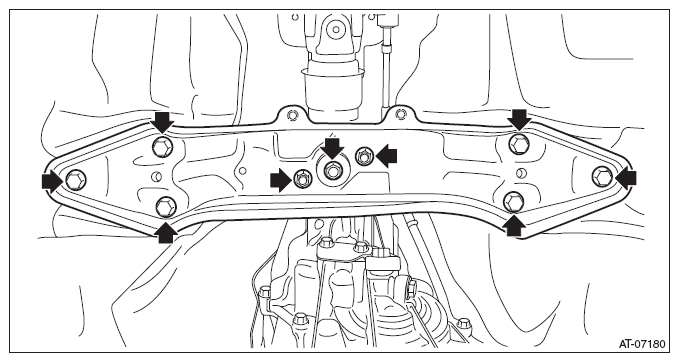

Fig 2: Locating Transmission Rear Crossmember Mounting Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear cushion rubber.

Fig 3: Identifying Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
