Transmission Rear CROSSMEMBER And Rear Cushion Rubber

Tightening torque:

40 N.m (4.1 kgf-m, 29.5 ft-lb)

Fig 1: Identifying Cushion Rubber

Courtesy of SUBARU OF AMERICA, INC.

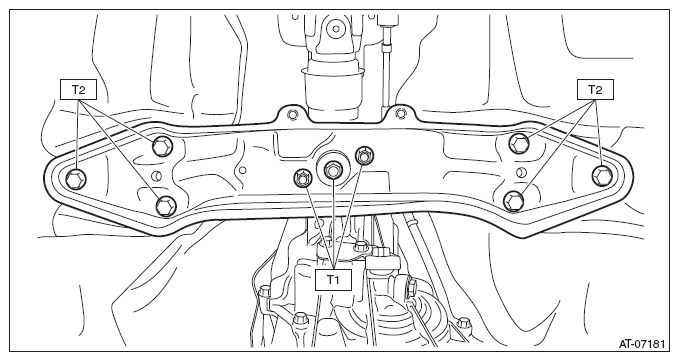

Tightening torque:

T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

T2: 75 N.m (7.6 kgf-m, 55.3 ft-lb)

Fig 2: Crossmember Mounting Bolts And Nuts With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Identifying Center Exhaust Cover

Courtesy of SUBARU OF AMERICA, INC.
