Inhibitor Harness

Remove the transmission from the vehicle. Refer to REMOVAL .
Remove the transmission case cover.

Fig 1: Identifying Transmission Case Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness connector from the ground terminal, turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.

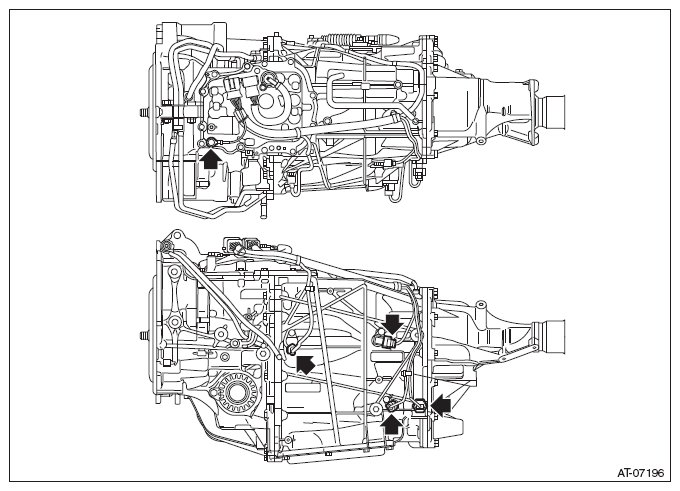

Fig 2: Locating Ground Terminal, Turbine Speed Sensor, Secondary Pressure Sensor, Primary And Secondary Speed Sensor Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness connector from inhibitor switch.

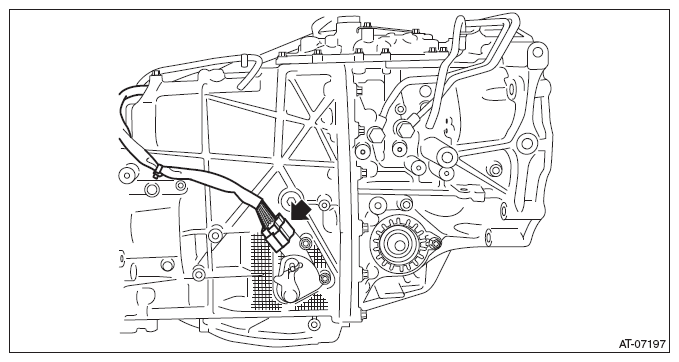

Fig 3: Locating Inhibitor Switch Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor harness connector from the transmission harness stay.

Fig 4: Identifying Inhibitor Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clip from the transmission, and remove the inhibitor harness.
