Transmission Harness

Clean the mating surface of valve cover and transmission side.
Check the control valve body for dust and other foreign matter.
Install the O-ring to the transmission harness.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.

  Fig 1: Locating Transmission Harness O-Ring
  Courtesy of SUBARU OF AMERICA, INC.
Install the transmission harness to the valve cover.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 2: Locating Transmission Harness Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the gasket to the transmission.
NOTE: Use a new gasket.
Apply liquid gasket to the oval hole of gasket.
Liquid gasket:

THREE BOND 1215 (Part No. 004403007) or equivalent

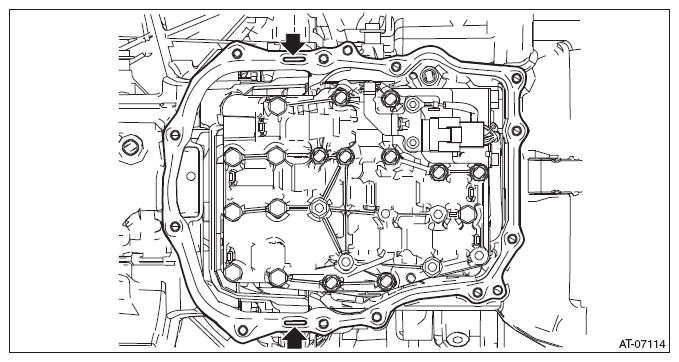

Fig 3: Locating Liquid Gasket Applying Areas On Oval Hole Of Gasket
Courtesy of SUBARU OF AMERICA, INC.
Connect the transmission harness connector to the control valve body, and install the valve cover.
CAUTION: Be careful not to catch the sheet of the ST.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 4: Identifying Valve Cover And Gasket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST (SHEET SPECIAL TOOL).
Install the transmission harness connector to the harness stay.
Install the transmission harness stay and transmission ground terminal.
NOTE: Install the transmission ground terminal in the direction within the range of approx. 30° (A).

Tightening torque:

T1: 7 N.m (0.7 kgf-m, 5.2 ft-lb)

T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

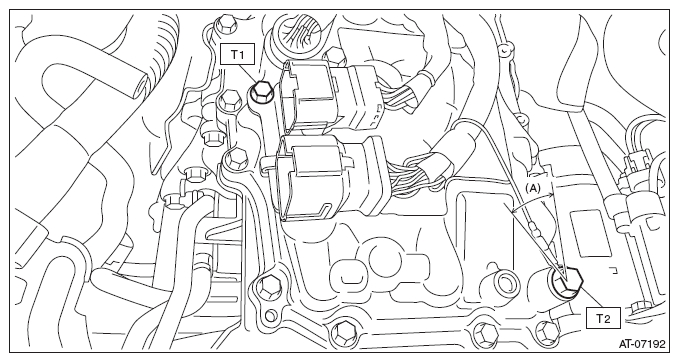

Fig 5: Identifying Transmission Ground Terminal Installation Angle
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission case cover.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 6: Locating Transmission Case Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission hanger and transmission radio ground cord.
Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)

Fig 7: Identifying Air Breather Hose, Transmission Hanger And Transmission Radio Ground Cord
Courtesy of SUBARU OF AMERICA, INC.
Attach the air breather hose to the transmission hanger.
Connect the following harness connectors.
- Transmission harness connectors
- Inhibitor harness connector
- Transmission radio ground terminal
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

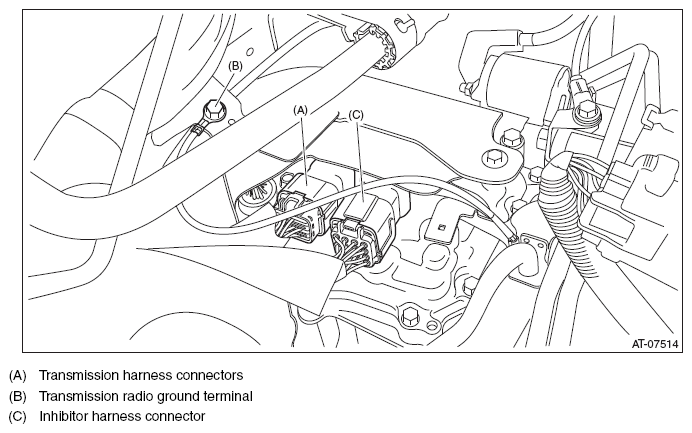

Fig 8: Identifying Transmission Harness Connectors, Transmission Radio Ground Terminal And Inhibitor Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot assembly. Refer to INSTALLATION .
Adjust the CVTF level. Refer to ADJUSTMENT .
