CVTF Cooler Pipe and Hose: Installation

CAUTION: When installing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe.

Temporarily install the CVTF cooler pipe COMPL, transmission hanger and transmission radio ground cord to the transmission.
NOTE: Use a new gasket.
Tighten the union screws and bolts in the order of (A) → (B) → (C).
Tightening torque:

T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

T3: 41 N.m (4.2 kgf-m, 30.2 ft-lb)

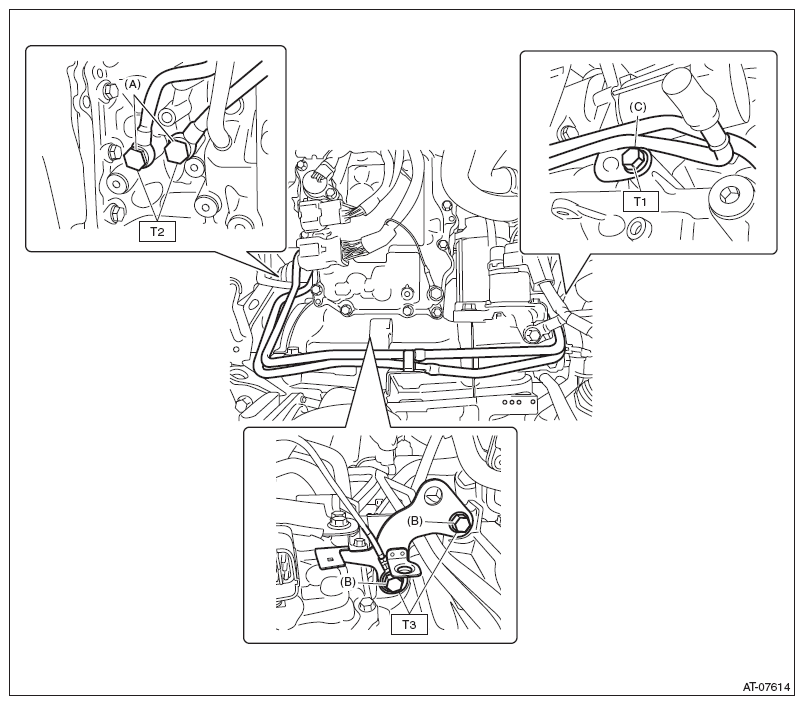

Fig 1: Union Screws And Bolts Tightening Sequence With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission case cover.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

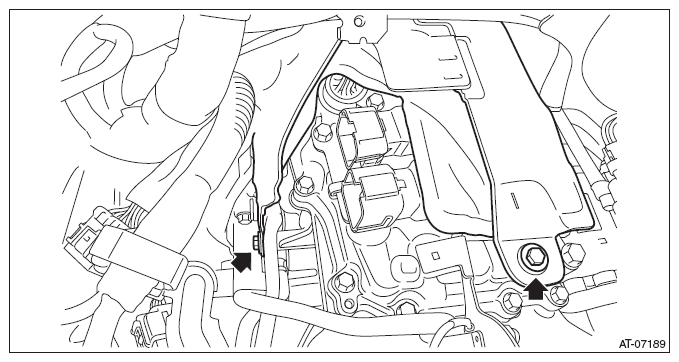

Fig 2: Locating Transmission Case Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the adapter harness connector to the transmission hanger.
Connect the following harness connectors.
- Transmission harness connectors
- Inhibitor harness connector
- Transmission radio ground terminal
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

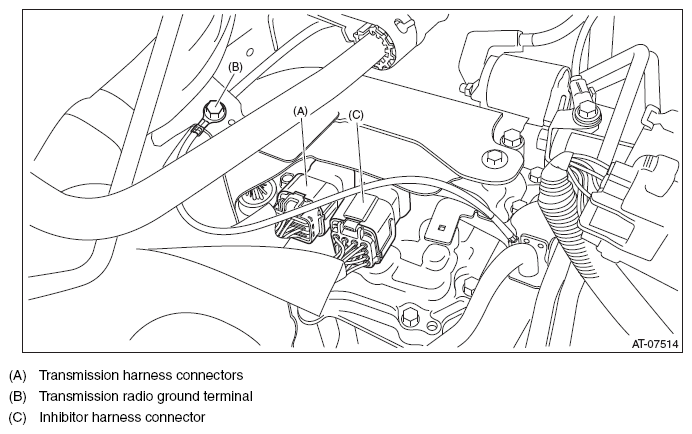

Fig 3: Identifying Transmission Harness Connectors, Transmission Radio Ground Terminal And Inhibitor Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF cooler pipe assembly to vehicle.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

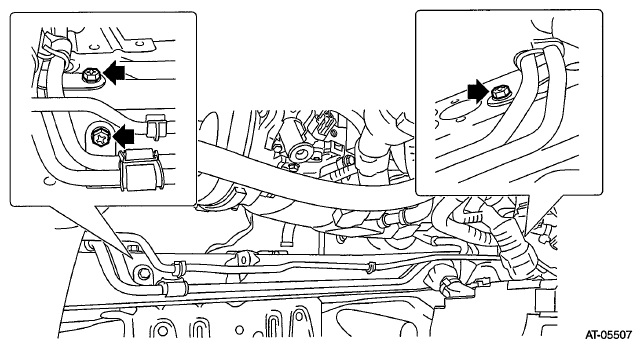

Fig 4: Locating CVTF Cooler Pipe Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the A/C pipe to clip.
Install the battery cable bracket, and install the battery cable clip to the bracket.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Fig 5: Locating Battery Cable Clip And Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the engine coolant reservoir tank. Refer to INSTALLATION .
Lift up the vehicle.
Install the CVTF CVT inlet hose and CVTF CVT outlet hose.
NOTE: Use new CVTF CVT inlet hose and CVTF CVT outlet hose.

Fig 6: Identifying CVTF CVT Inlet And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF radiator inlet hose and CVTF radiator outlet hose on radiator side.
NOTE: Use new CVTF radiator inlet hose and CVTF radiator outlet hose.

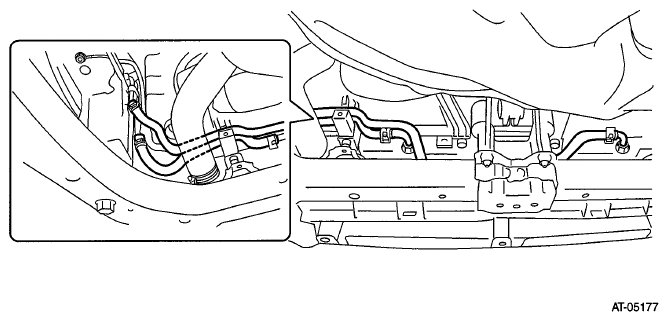

Fig 7: Identifying CVTF Radiator Inlet And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Install the battery.
Adjust the CVTF level and check there is no leakage. Refer to ADJUSTMENT .
