Transmission Case Side

  1. Remove the transmission assembly. Refer to REMOVAL .
  2. Remove the transmission case cover.
    Fig 1: Identifying Transmission Case Cover
    G08578739Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose.

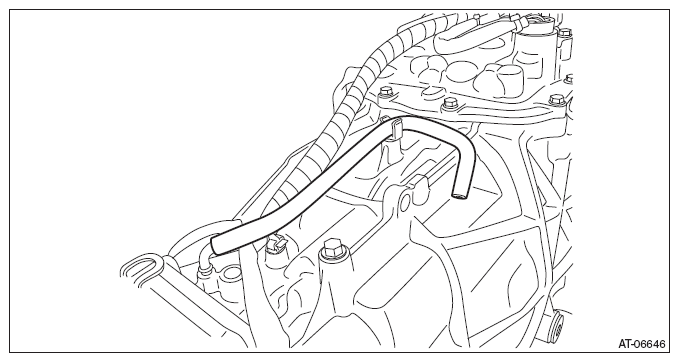

    Fig 2: Identifying Air Breather Hose
    G08317883Courtesy of SUBARU OF AMERICA, INC.
