Front Differential Side

Install in the reverse order of removal.

Insertion depth A:

16 - 36 mm (0.63 - 1.42 in)

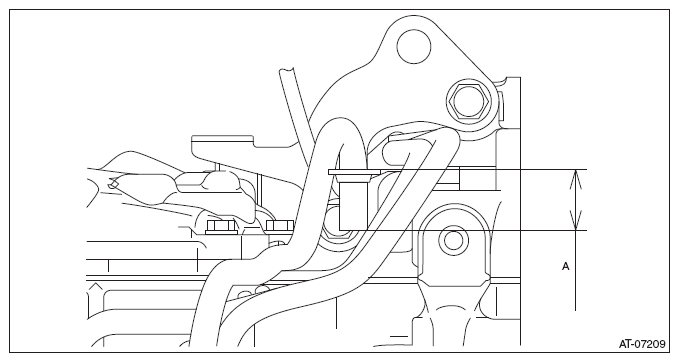

Fig 1: Identifying Front Differential Side Insertion Depth
G08578783Courtesy of SUBARU OF AMERICA, INC.
