Continuously Variable Transaxle (CVT) (Diagnostics): Electrical Component Location: Location: Solenoid

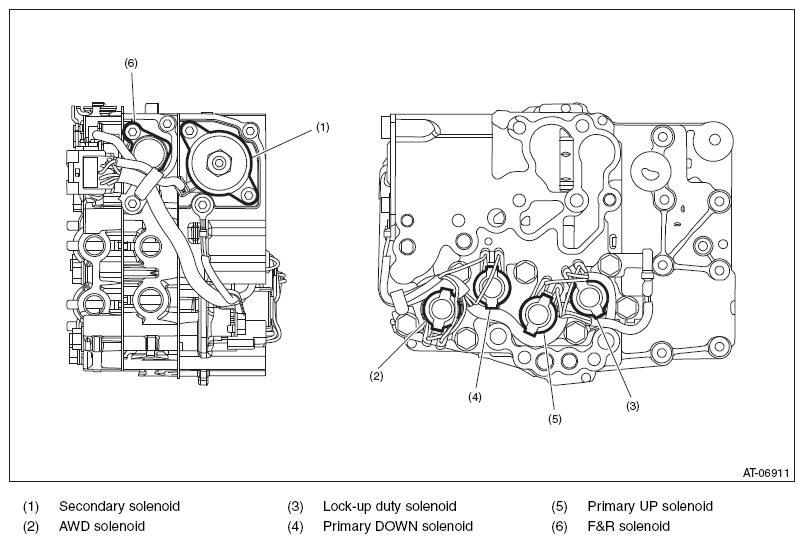

Fig 1: Solenoid Electrical Component Location

G08579085

Courtesy of SUBARU OF AMERICA, INC.
