Rack Shaft Sliding Resistance

Measure the resistance with the rack shaft pulled.

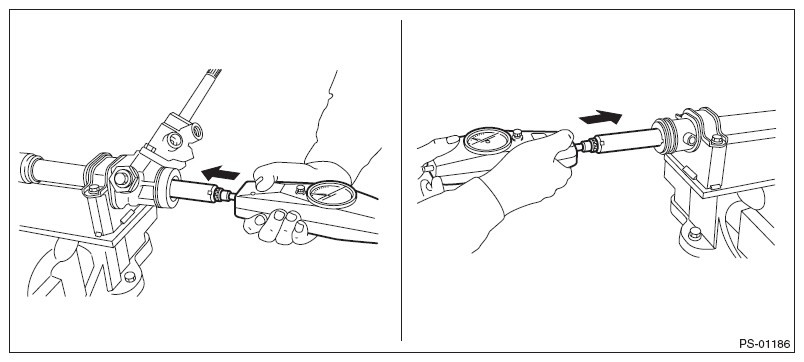

Fig 1: Measuring Rack Shaft Sliding Resistance

Courtesy of SUBARU OF AMERICA, INC.

Limit: 650 N (66.2 kgf, 146 lbf) or less

Left/right differential of sliding resistance: 20 % or less
