Rack Shaft Play In The Radial Direction

• Right-turn steering

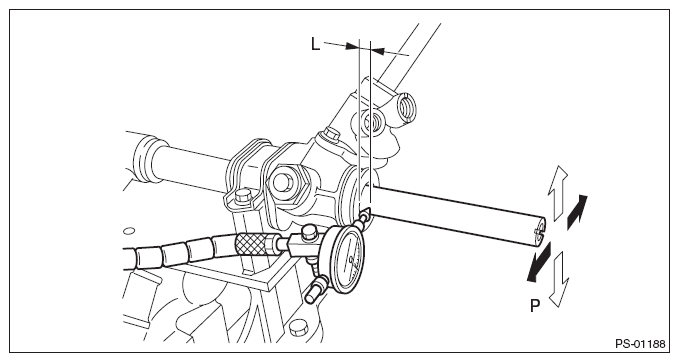

  Fig 1: Measuring Rack Shaft Play In Radial Direction (Right-Turn Steering)

  Courtesy of SUBARU OF AMERICA, INC.

Limit

Direction <== ==> : 0.4 mm (0.016 in) or less

Direction <== ==> : 0.6 mm (0.024 in) or less

Condition

L: 5 mm (0.20 in)

P: 98 N (10 kgf, 22 lbf)

• Left-turn steering

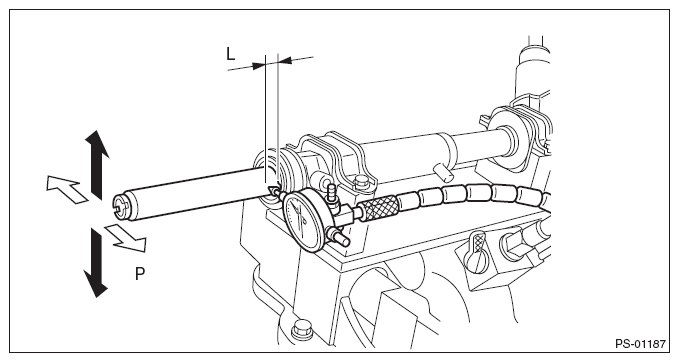

  Fig 2: Measuring Rack Shaft Play In Radial Direction (Left-Turn Steering)

  Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Direction <== ==> : 0.4 mm (0.016 in) or less

Direction <== ==> : 0.4 mm (0.016 in) or less
