Side Airbag Sensor: Installation

CAUTION: Do not reuse the bolt and nut.
Always replace with the specified new bolts and nuts.

Before installation, inspect the following items and replace any faulty part with a new part.
- The side airbag sensor, sensor bracket, or connector are damaged.
- Side airbag has been activated.
Tightening torque:

Side airbag sensor: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
Install each part in the reverse order of removal.
CAUTION: If the hook is disconnected from the vehicle body, replace the hook with the new part to prevent the decline of the fixed force of the seat.

Fig 1: Identifying Rear Seat Cushion Assembly Hook
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Assemble the center pillar trim LWR to the center pillar trim UPR securely.

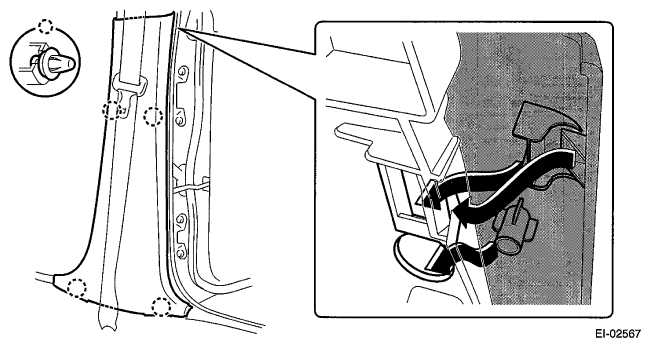

Fig 2: Assembling Center Pillar Trim LWR To Center Pillar Trim UPR
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Front seat belt: Refer to FRONT SEAT BELT .
