Driver's Airbag Module (Roll Connector)

  1. How to disconnect:
    CAUTION: When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.
    1. Push the slide lock (A) in the direction of arrow.
    2. With the slide lock pushed, disconnect the connector.

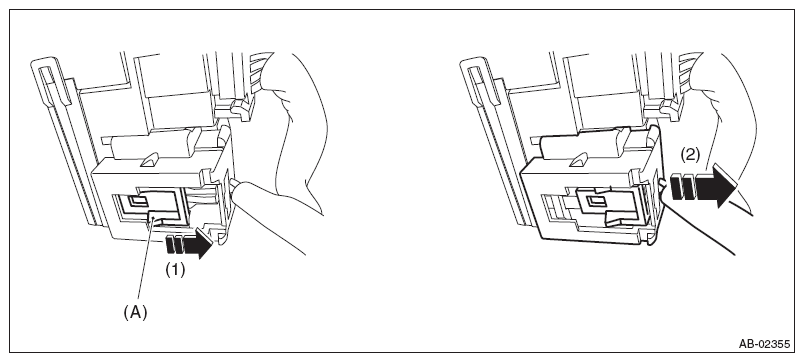

      Fig 1: Pushing Driver's Airbag Module (Roll Connector) Slide Lock
      G08584009Courtesy of SUBARU OF AMERICA, INC.
  2. How to connect:
    CAUTION: Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

    Holding the connector, push it in securely until a clicking sound is heard.

    Fig 2: Inserting Airbag Connector
    G06653083Courtesy of SUBARU OF AMERICA, INC.
