Special Tool

Subaru Select Monitor

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	1B022XU0	SUBARU SELECT MONITOR III KIT	Used for troubleshooting the electrical system.

TEST HARNESS H

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299FA030	TEST HARNESS H	Used when measuring voltage and resistance of front sub sensor and front door impact sensor.

Fig 1: Identifying Test Harness H Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS N

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299SA000	TEST HARNESS N	Used when measuring voltage and resistance of driver's airbag module, seat belt pretensioner and curtain airbag module.

Fig 2: Identifying Test Harness N Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS P

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299SA020	TEST HARNESS P	Used when measuring voltage and resistance of passenger's airbag module harness.

Fig 3: Identifying Test Harness P Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Q

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299SA040	TEST HARNESS Q	Used when measuring voltage and resistance of driver's airbag module and lap seat belt pretensioner.

Fig 4: Identifying Test Harness Q Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AG

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AG070	TEST HARNESS AG	Used when measuring voltage and resistance of airbag control module.

Fig 5: Identifying Test Harness AG Terminals End View (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Test Harness AG Terminals End View (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AH

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AG080	TEST HARNESS AH	Used together with test harness AG when measuring voltage and resistance of the airbag control module.

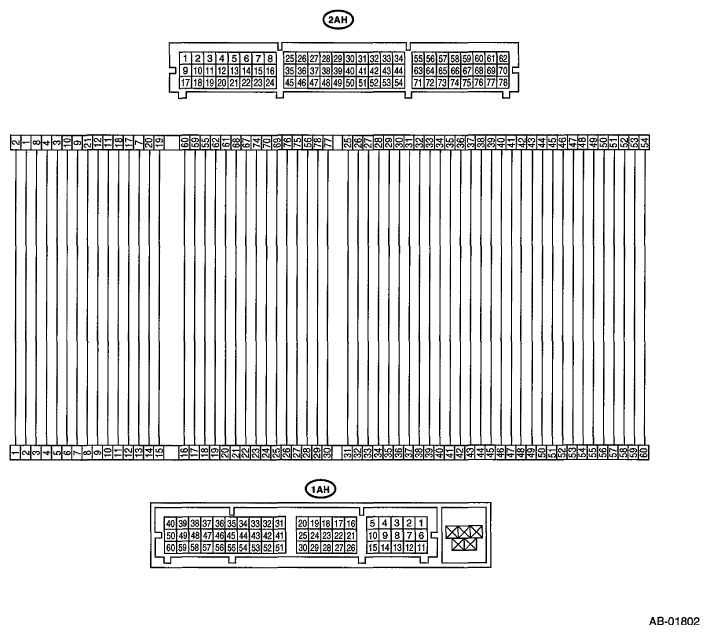

Fig 7: Identifying Test Harness AH Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS V

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AG010	TEST HARNESS V	Used when measuring voltage and resistance of side airbag sensor and curtain airbag sensor.

Fig 8: Identifying Test Harness V Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG RESISTOR

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299PA040	AIRBAG RESISTOR	Used in replacement of airbag module for which resistance value is same as airbag module. Two STs are required for diagnosis of two-stage inflator type airbag module.

Fig 9: Identifying Airbag Resistor Connector Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AJ

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299FG000	TEST HARNESS AJ	Used when measuring power supply and resistance of side airbag harness.

Fig 10: Identifying Test Harness AJ Terminals End View

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AI

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
	98299AG090	TEST HARNESS AI	Used for diagnoses of side airbag sensor and curtain airbag sensor. Used together with test harness V.

Fig 11: Identifying Test Harness AI Terminals End View
