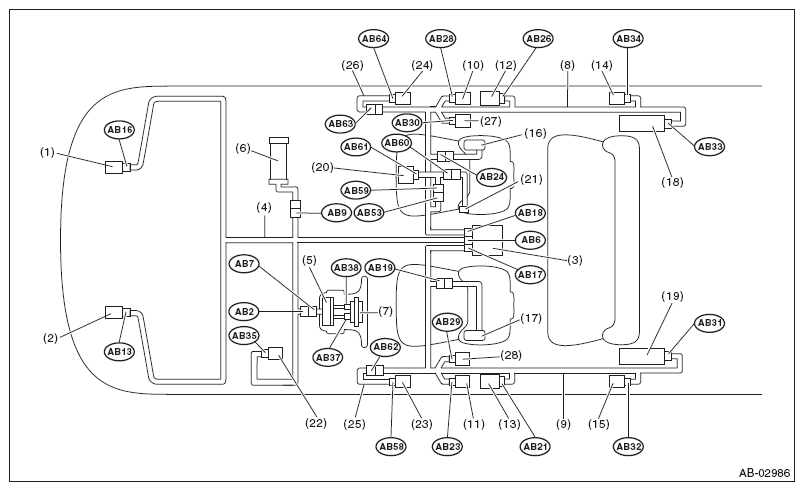

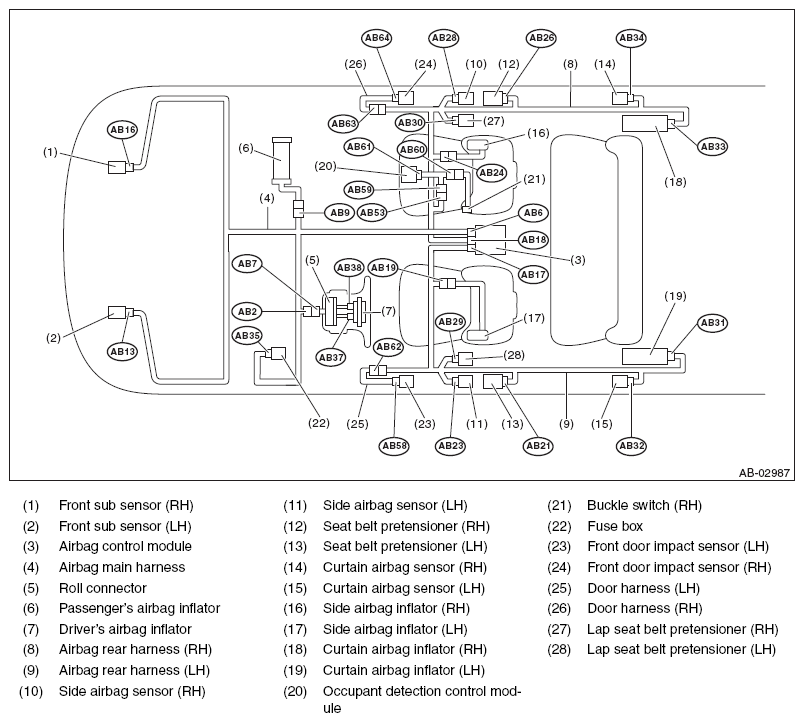

Air Bag System (Diagnostics): Electrical Component Location: Location

Connector No. (AB2) (AB6) (AB7) (AB9) (AB13) (AB16) (AB17) (AB18) (AB19) (AB21) (AB23) (AB24)
Pin 4 30 4 4 2 2 15 or 24 15 or 24 4 2 4 4
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Black Yellow Yellow
Male/Female Female Female Male Female Female Female Female Female Female Female Female Female
Connector No. (AB26) (AB28) (AB29) (AB30) (AB31) (AB32) (AB33) (AB34) (AB35) (AB37) (AB38) (AB53)
Pin 2 4 2 2 2 4 2 4 2 2 2 3
Color Black Yellow Orange Orange Black Yellow Black Yellow * Orange Black Brown
Male/Female Female Female Female Female Female Female Female Female Female Female Female Female
Connector No. (AB58) (AB59) (AB60) (AB61) (AB62) (AB63) (AB64)
Pin 2 3 2 10 2 2 2
Color Yellow Brown Yellow Black Yellow Yellow Yellow
Male/Female Female Male Male Female Female Female Female
*: White or natural color
