DTC B1836 Open In Curtain Airbag LH Squib Circuit: Wiring Diagram

See appropriate SYSTEM WIRING DIAGRAM article.

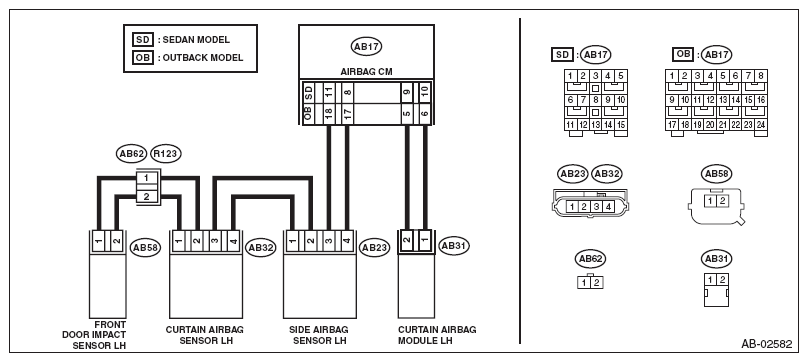

Fig 1: Airbag System - Wiring Diagram (Curtain Airbag LH Squib Circuit)
G07914584Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE

Step Check Yes No
1 CHECK POOR CONTACT OF CONNECTORS.
Check for poor contact of the connectors between the airbag control module, curtain airbag module LH and the curtain airbag sensor LH.		 Is there poor contact? Replace the airbag rear harness along with body harness. Go to step 2  .
2 CHECK CURTAIN AIRBAG MODULE.
  1. Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.
  2. Disconnect the connector (AB31) from curtain airbag module (LH).
  3. Connect the connector (1N) in the test harness N to the connector (AB31).
  4. Connect the airbag resistor to the connector (2N) of test harness N.
  5. Connect the battery ground terminal and turn the ignition switch to ON.
 Does the airbag warning light illuminate for 6 seconds and go off? Replace the curtain airbag module (LH). Refer to CURTAIN AIRBAG MODULE . Go to step 3  .
3 CHECK AIRBAG REAR HARNESS (CURTAIN AIRBAG MODULE HARNESS LH).
  1. Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.
  2. Disconnect the connector (AB21) from seat belt pretensioner (LH).
  3. Disconnect connector (AB19) from side airbag module (LH).
  4. Disconnect the airbag resistor from test harness N.
  5. Disconnect the connectors (AB6, AB17, AB18) from airbag control module.
  6. Connect the connector (1AG) in the test harness AG to the connectors (AB6, AB17, AB18).
    NOTE: For sedan models, connect test harness AH between the connectors (AB6, AB17, AB18) and (1AG).
  7. Measure the resistance between connector (5AG) or (6AG) in the test harness AG and connector (2N) in the test harness N.

    Connector & terminal

    Sedan model

    (5AG) No. 6 - (2N) No. 1:

    (5AG) No. 12 - (2N) No. 2:

    OUTBACK model

    (6AG) No. 8 - (2N) No. 1:

    (6AG) No. 6 - (2N) No. 2:

 Is the resistance less than 10 Ω? Go to step 4  . Replace the airbag rear harness along with body harness.
4 CHECK AIRBAG CONTROL MODULE.
  1. Connect all connectors.
  2. Clear the memory.
  3. Perform the Inspection Mode.
  4. Read the DTC. (Current malfunction)
 Is the same DTC displayed? Replace the airbag control module. Refer to AIRBAG CONTROL MODULE . Go to step 5  .
5 CHECK FOR ANY OTHER DTC ON DISPLAY.  Is any other DTC displayed? Check DTC using "List of Diagnostic Trouble Code (DTC)". Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . Finish the diagnosis.
