Electrical Specification
- OUTBACK model

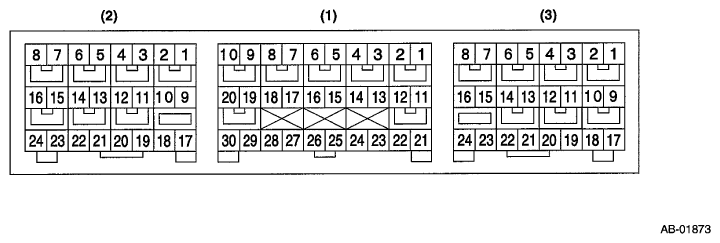

- Terminal numbers in airbag control module connector are shown in the figure.
- The airbag warning light illuminates when the connector is removed from the airbag control module.
Item Control module terminal No. Data link connector (1) - 16 Ignition power supply Dedicated fuse (1) - 21 Passenger's airbag module level one + (1) - 4 - (1) - 3 Passenger's airbag module level two + (1) - 1 - (1) - 2 Driver's airbag module level one + (1) - 5 - (1) - 6 Driver's airbag module level two + (1) - 8 - (1) - 7 CAN-H (1) - 13 CAN-L (1) - 22 Front sub sensor LH + (1) - 30 - (1) - 28 Front sub sensor RH + (1) - 29 - (1) - 27 Ground line (GND) (1) - 25 (1) - 26 Passenger's airbag ON indicator (1) - 23 Passenger's airbag OFF indicator (1) - 17 Passenger's seat belt warning (1) - 15 Side airbag sensor RH
Curtain airbag sensor RH
Front door impact sensor RH+ (2) - 24 - (2) - 23 Seat belt pretensioner RH + (2) - 5 - (2) - 6 Lap seat belt pretensioner RH + (2) - 8 - (2) - 7 Side airbag module RH + (2) - 1 - (2) - 2 Curtain airbag module RH + (2) - 4 - (2) - 3 Occupant detection control module + (2) - 9 - (2) - 17 Side airbag sensor LH
Curtain airbag sensor LH
Front door impact sensor LH+ (3) - 17 - (3) - 18 Side airbag module LH + (3) - 8 - (3) - 7 Curtain airbag module LH + (3) - 5 - (3) - 6 Seat belt pretensioner LH + (3) - 4 - (3) - 3 Lap seat belt pretensioner LH + (3) - 1 - (3) - 2 - Sedan model
- Terminal numbers in airbag control module connector are shown in the figure.
- The airbag warning light illuminates when the connector is removed from the airbag control module.
Item Control module terminal No. Data link connector (1) - 16 Ignition power supply Dedicated fuse (1) - 21 Passenger's airbag module level one + (1) - 4 - (1) - 3 Passenger's airbag module level two + (1) - 1 - (1) - 2 Driver's airbag module level one + (1) - 5 - (1) - 6 Driver's airbag module level two + (1) - 8 - (1) - 7 CAN-H (1) - 13 CAN-L (1) - 22 Front sub sensor LH + (1) - 30 - (1) - 28 Front sub sensor RH + (1) - 29 - (1) - 27 Ground line (GND) (1) - 25 (1) - 26 Passenger's airbag ON indicator (1) - 23 Passenger's airbag OFF indicator (1) - 17 Passenger's seat belt warning (1) - 15 Seat belt pretensioner RH + (2) - 2 - (2) - 1 Lap seat belt pretensioner RH + (2) - 4 - (2) - 5 Ground line (GND) (2) - 3 Side airbag sensor RH
Curtain airbag sensor RH
Front door impact sensor RH+ (2) - 8 - (2) - 15 Side airbag module RH + (2) - 9 - (2) - 10 Curtain airbag module RH + (2) - 7 - (2) - 6 Occupant detection control module + (2) - 14 - (2) - 13 Seat belt pretensioner LH + (3) - 4 - (3) - 5 Lap seat belt pretensioner LH + (3) - 2 - (3) - 1 Ground line (GND) (3) - 3 Side airbag sensor LH
Curtain airbag sensor LH
Front door impact sensor LH+ (3) - 8 - (3) - 11 Side airbag module LH + (3) - 7 - (3) - 6 Curtain airbag module LH + (3) - 9 - (3) - 10
