Relay and Fuse: Location

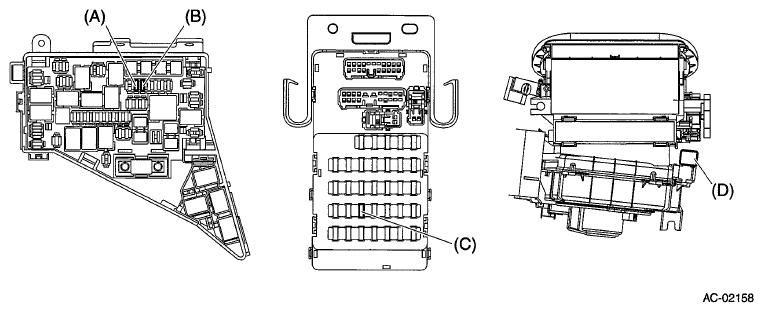

Fig 1: Relay And Fuse Location

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Fuse 15 A (Blower motor relay)	(A)
Main fuse box	Fuse 15 A (Blower motor relay)	(B)
Relay & fuse box	Fuse 15 A (Bower motor relay, intake door actuator)	(C)
Blower motor unit	Blower motor relay	(D)

NOTE: For other related fuses, refer to the wiring diagram. See appropriate SYSTEM WIRING DIAGRAM article.
