Rear Vent Door Actuator: Removal

  1. Remove the instrument panel assembly. Refer to REMOVAL .
  2. Remove the foot duct RH.
    1. Turn over the floor carpet and remove the rear heater duct slide lock.
    2. Remove the screws and remove the foot duct RH.

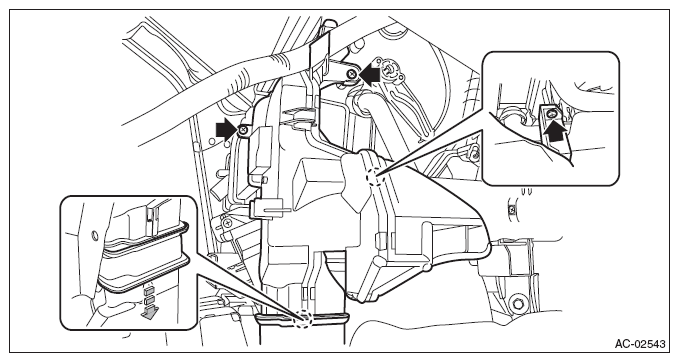

      Fig 1: Removing Foot Duct (RH)
      G08583913Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the screws, and remove the rear vent actuator.
    Fig 2: Locating Rear Vent Actuator Screws
    G08583914Courtesy of SUBARU OF AMERICA, INC.
