Power Transistor (Auto A/C Model): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the clips, and remove the glove box under cover.

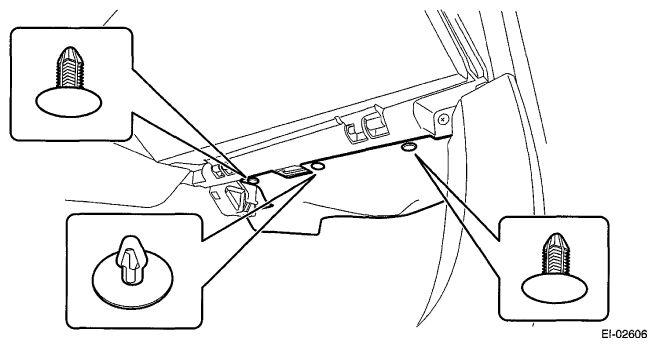

    Fig 1: Identifying Glove Box Under Cover Clips
    G06653124Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the power transistor.
    1. Disconnect the connector.
    2. Remove the screws and remove the power transistor.

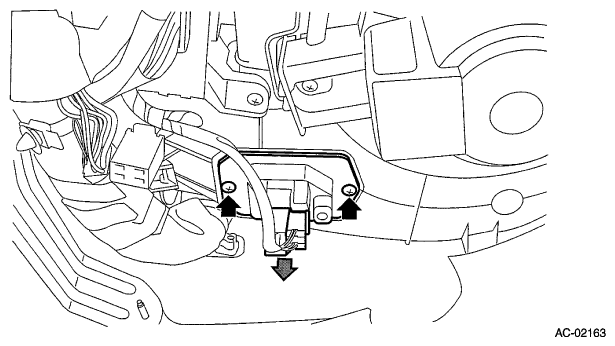

      Fig 2: Removing Power Transistor Connector
      G06652940Courtesy of SUBARU OF AMERICA, INC.
