In-Vehicle Sensor (Auto A/C Model): Removal

CAUTION: Be careful not to damage the sensors and interior trims when removing.
  1. Disconnect the ground cable from battery.
  2. Remove the clips, and remove the instrument panel side cover LH.
    Fig 1: Identifying Instrument Panel Side Cover Clips (LH)
    G06653104Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the instrument panel lower cover.
    1. Remove the clip.
    2. Remove the data link connector, and remove the instrument panel lower cover under.

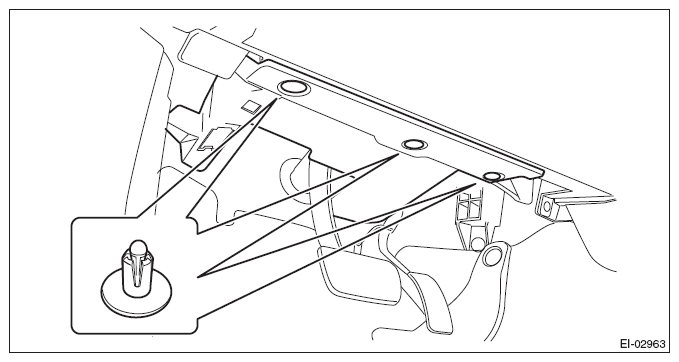

      Fig 2: Identifying Instrument Panel Lower Cover Clips
      G08583885Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the screws and clips and release the claws, and remove the instrument panel lower cover while disconnecting the harness connectors.
      Fig 3: Locating Instrument Panel Lower Cover Screws
      G06653106Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the screw and remove the in-vehicle sensor from the instrument lower cover.

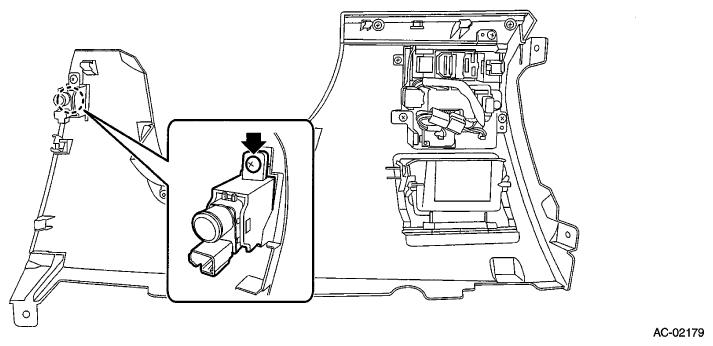

    Fig 4: Locating In-Vehicle Sensor Mounting Screw
    G06652999Courtesy of SUBARU OF AMERICA, INC.
