Heater Vent Duct: Removal

  1. Remove the instrument panel face assembly. Refer to REMOVAL .
  2. Remove the heater vent duct.
    1. Remove the screws, and then remove the front vent duct.

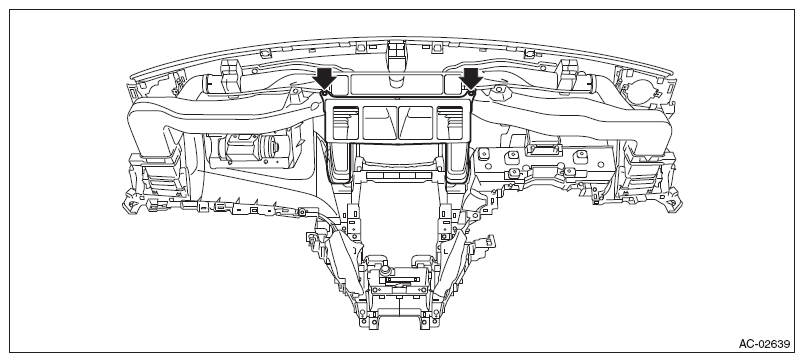

      Fig 1: Locating Heater Vent Duct Screws
      G08348769Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws and remove the screws, then detach the side vent duct LH and RH.

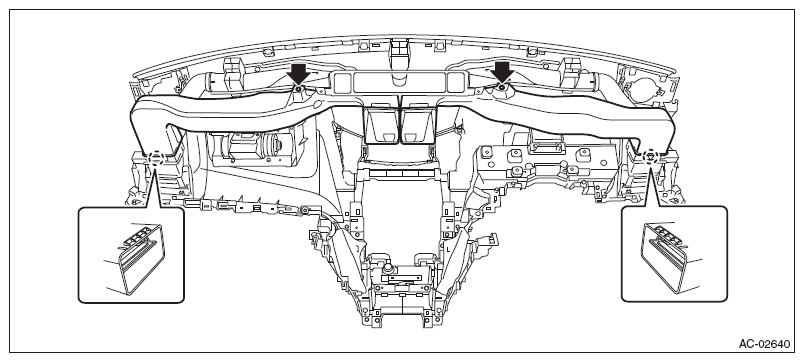

      Fig 2: Locating Side Vent Duct Claws And Screws
      G08348770Courtesy of SUBARU OF AMERICA, INC.
