Subaru
>>
2013
>>
Legacy Premium, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System (Heater, Ventilator And A/C)
>>
General Description
>>
Location
>>
Electrical Parts (Actuators And Sensors)
Electrical Parts (Actuators And Sensors)
Engine compartment

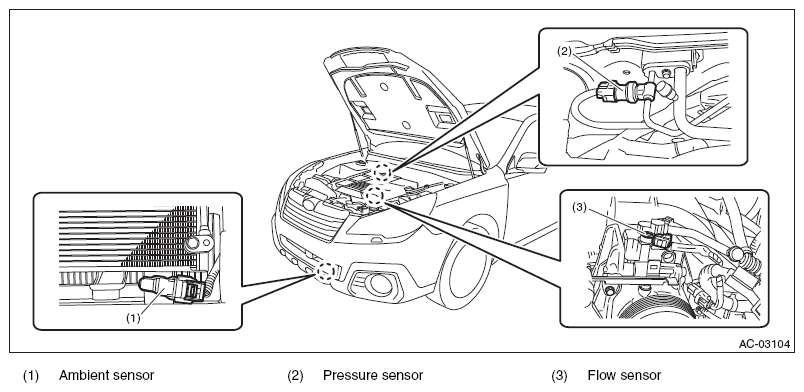

Fig 1: Electrical Components Location (Engine Compartment)
Courtesy of SUBARU OF AMERICA, INC.
Compartment

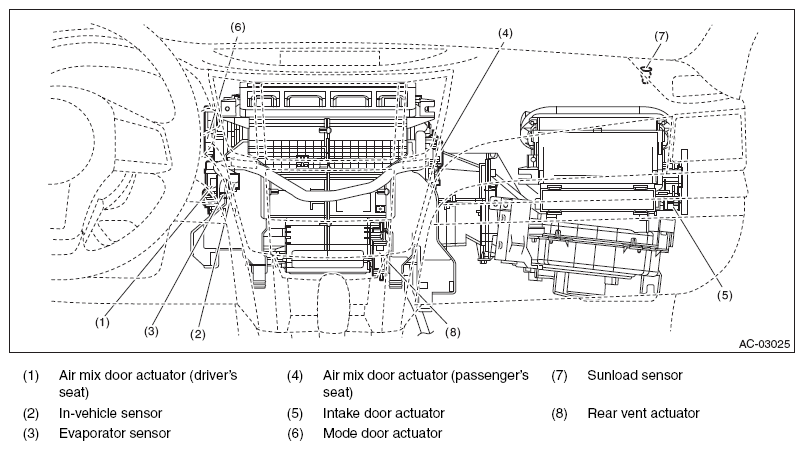

Fig 2: Electrical Components Location (Passenger Compartment)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
