Subaru
>>
2013
>>
Legacy Premium, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System (Heater, Ventilator And A/C)
>>
General Description
>>
Components With Torque Specifications
>>
Heater Duct
Heater Duct

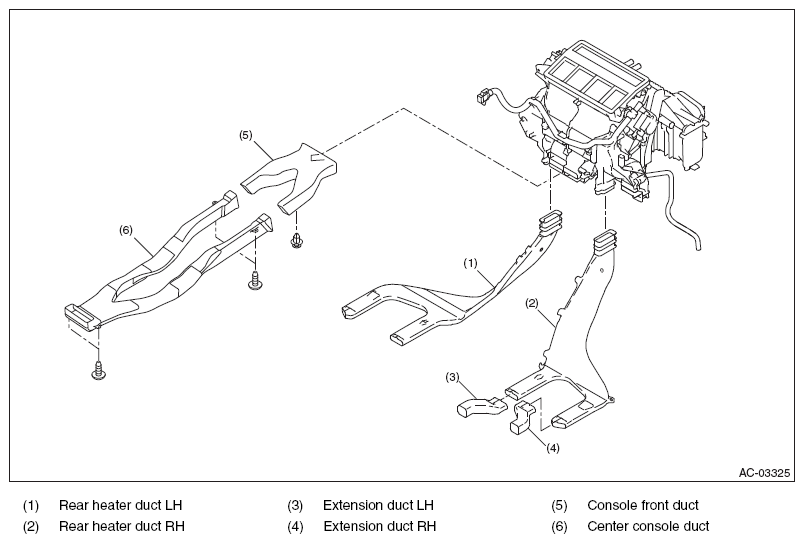

Fig 1: Identifying Heater Duct Components (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

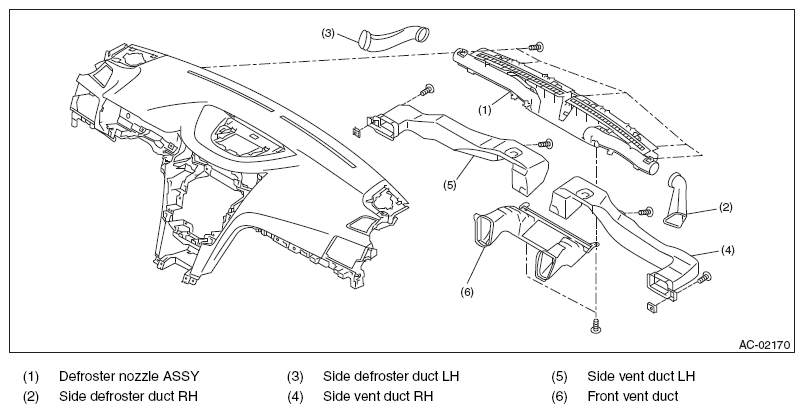

Fig 2: Identifying Heater Duct Components (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
