Heater Cooling Unit

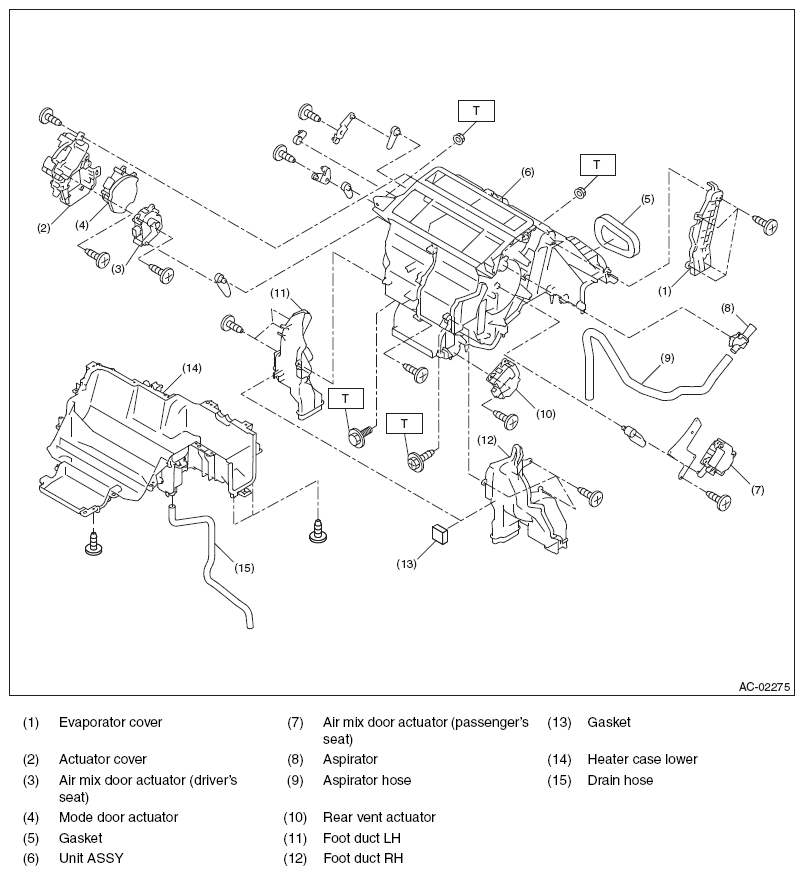

Fig 1: Heater Cooling Unit Components With Torque Specifications (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 3.5 (0.36, 2.6)

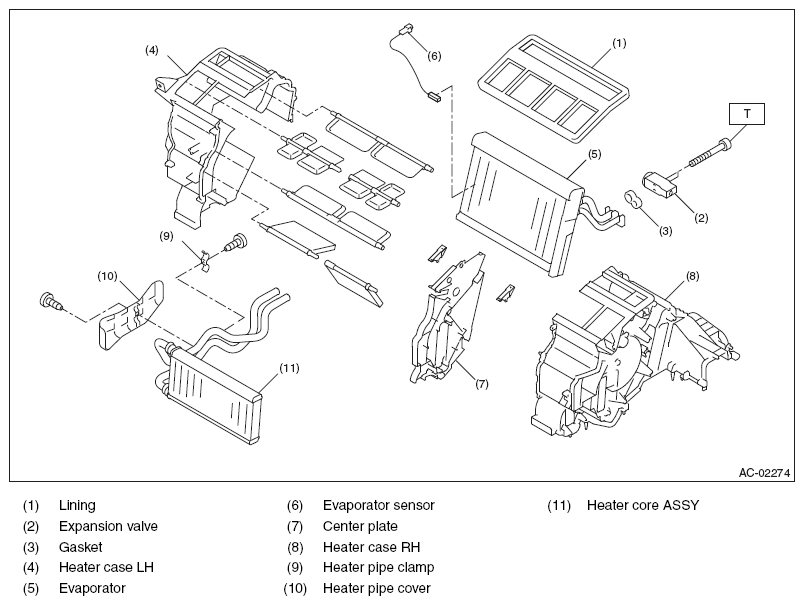

Fig 2: Heater Cooling Unit Components With Torque Specifications (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
