Components With Torque Specifications: Compressor

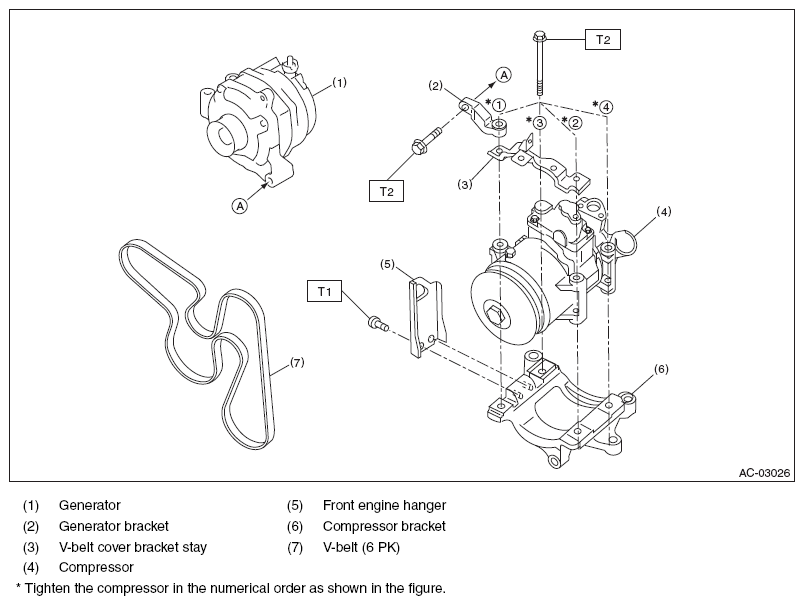

Fig 1: Compressor Replacement Components With Torque Specifications (H4 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.04, 14.8)

T2: 25 (2.55, 18.4)

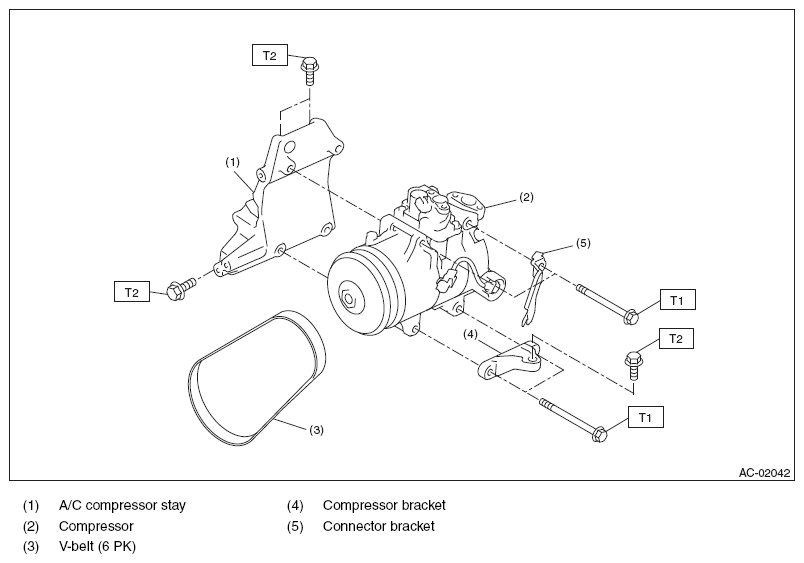

Fig 2: Compressor Replacement Components With Torque Specifications (H6 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 26.5 (2.70, 19.5)

T2: 36 (3.67, 26.6)
