FRESH/RECIRC Door Actuator: Removal

  1. Set the intake door actuator to RECIRC position.
    1. Turn the ignition switch to ON.
    2. Operate the control panel and switch to RECIRC mode.
    3. In the condition of step ( 2), turn the ignition switch to OFF.
  2. Remove the instrument panel assembly. Refer to REMOVAL .
  3. Remove the screw, and remove the intake door actuator.

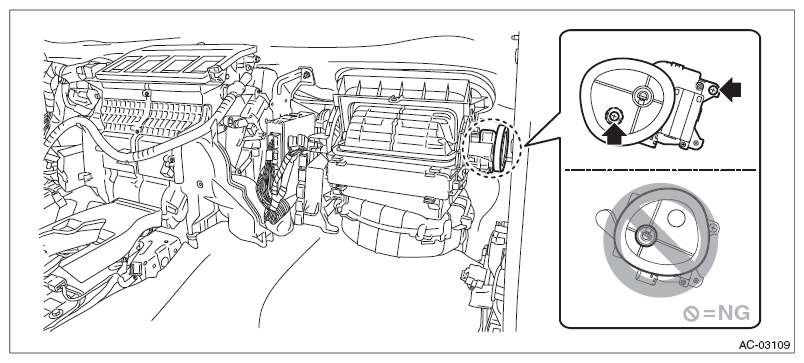

    Fig 1: Locating Intake Door Actuator Screws
    G08583894Courtesy of SUBARU OF AMERICA, INC.
