Evaporator Sensor: Removal

  1. Remove the evaporator. Refer to REMOVAL .
  2. Remove the evaporator sensor from the evaporator.

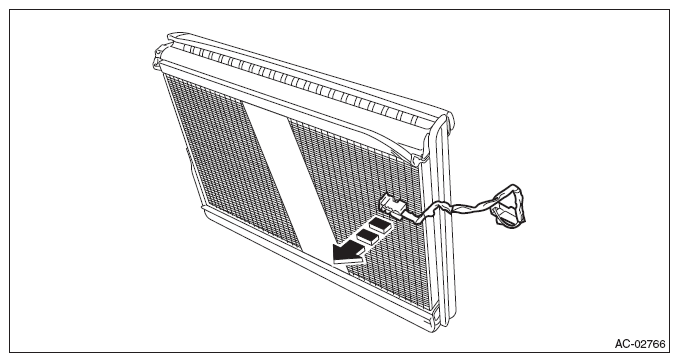

    Fig 1: Removing Evaporator Sensor
    G08348741Courtesy of SUBARU OF AMERICA, INC.
