Manual A/C Model

Disconnect the ground cable from battery.
Remove the center panel assembly.
CAUTION: Do not put your finger on the fin of the air vent grille. Doing so may damage the fin.

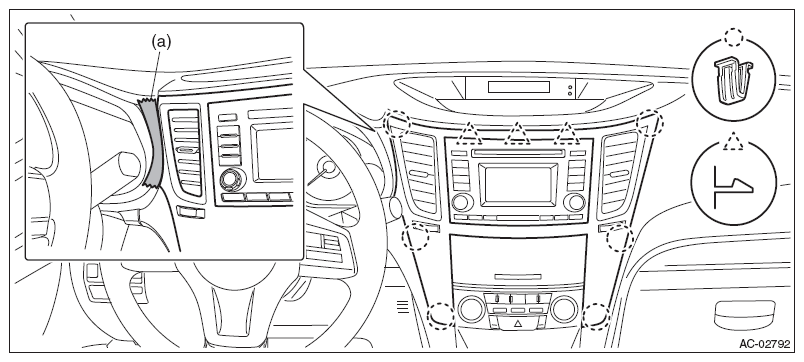

1. Attach the protective tape (a) to the meter visor.

  Fig 1: Identifying Protective Tape Attached To Meter Visor
  Courtesy of SUBARU OF AMERICA, INC.

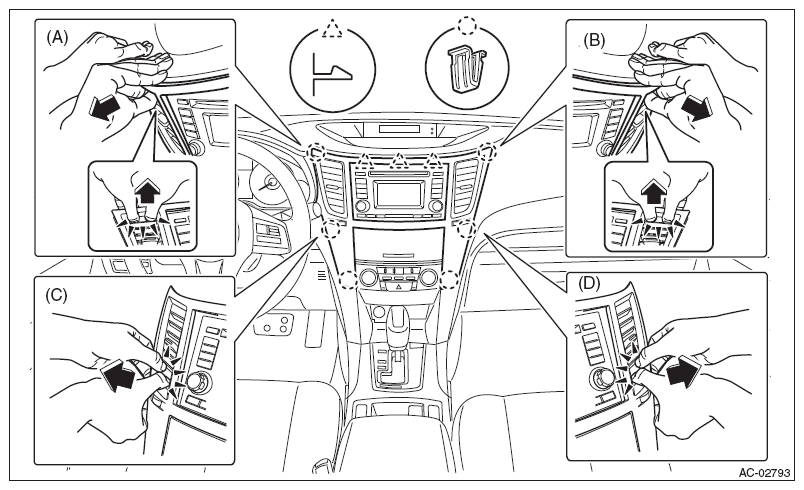

2. Insert a finger into the air vent grille and release the left and right clips at the top of the center panel. (A), (B)
3. Insert a finger into the air vent grille and release the left and right clips at the center of the center panel. (C), (D)
4. Release the clips at the bottom of the center panel and remove the center panel assembly.

  Fig 2: Releasing Center Panel Clips
  Courtesy of SUBARU OF AMERICA, INC.
Remove the audio assembly.
1. Remove the left and right screws, and partially pull the audio out from center console.
2. Disconnect the connectors, and remove the audio assembly.

  Fig 3: Locating Audio Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.
Remove the navigation assembly. (model with navigation)
1. Remove the left and right screws.
2. Disconnect the connectors, and remove the navigation assembly.

  Fig 4: Locating Navigation Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.
Remove the control panel.

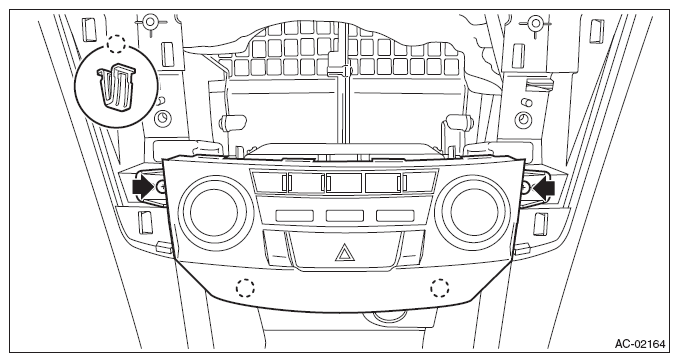

1. Remove the screws and release the clip.

  Fig 5: Locating Control Panel Screws
  Courtesy of SUBARU OF AMERICA, INC.

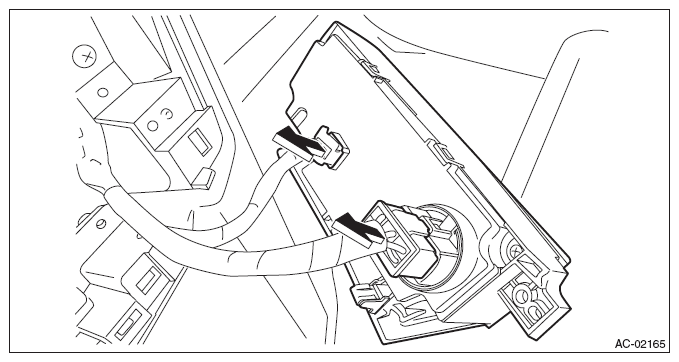

2. Pull the control panel and disconnect the connector.

  Fig 6: Disconnecting Control Panel Connector
  Courtesy of SUBARU OF AMERICA, INC.
