HVAC System (Heater, Ventilator And A/C): Condenser: Removal

Using the refrigerant recovery system, discharge refrigerant. Refer to PROCEDURE .
Remove the clips and remove the air intake duct.

Fig 1: Locating Air Intake Duct Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips and remove the grille bracket.
NOTE: To prevent damage to the grille bracket, make sure to remove all clips.

Fig 2: Locating Grille Bracket Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and disconnect the high pressure hose and A/C pipe from the condenser.

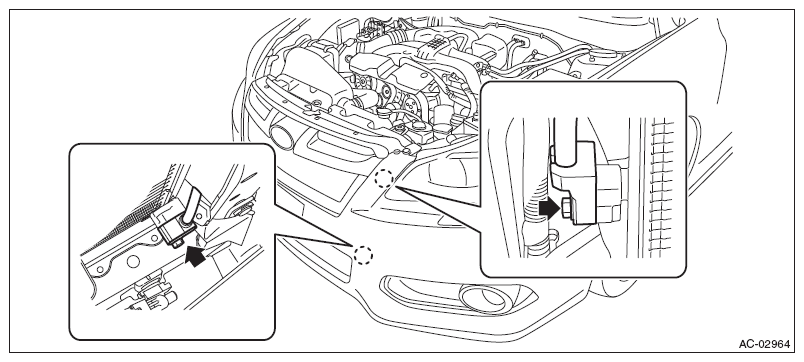

Fig 3: Locating High Pressure Hose And A/C Pipe Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and remove the radiator upper bracket.

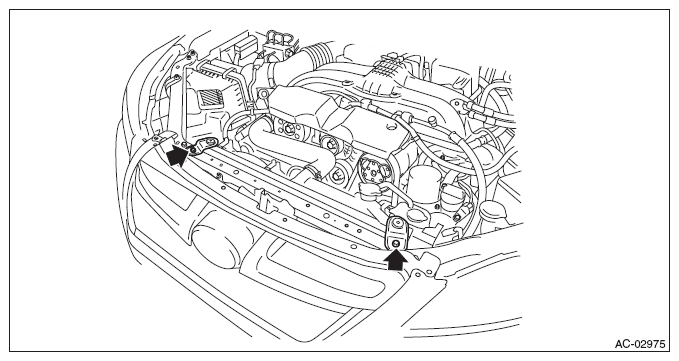

Fig 4: Locating Radiator Upper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the condenser.
1. Remove the bolt.

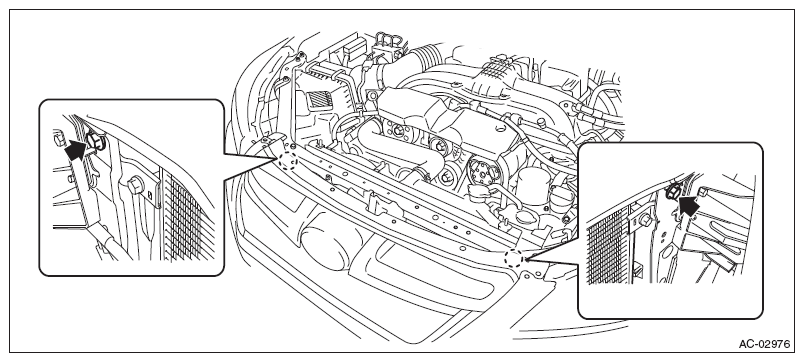

  Fig 5: Locating Condenser Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. By lifting the condenser, pull it out through the space between the radiator and the radiator panel.
  CAUTION: Be careful not to damage the condenser fins. If a damaged fin is found, repair it using a thin screwdriver.

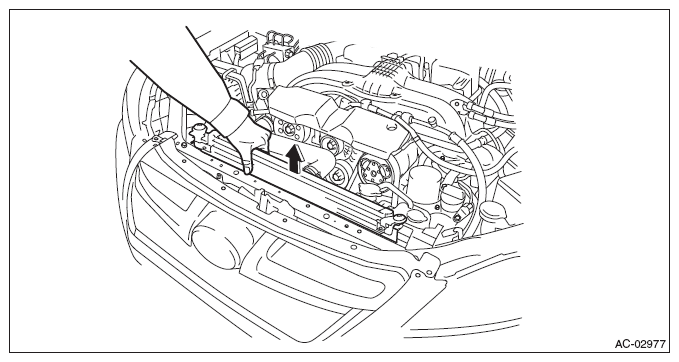

  Fig 6: Pulling Out Condenser
  Courtesy of SUBARU OF AMERICA, INC.
