Blower Resistor (Manual A/C Model): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the clips, and remove the glove box under cover.
    Fig 1: Identifying Glove Box Under Cover Clips
    G06653124Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the blower resistor.
    1. Disconnect the connector.
    2. Remove the screw and remove the blower resistor.

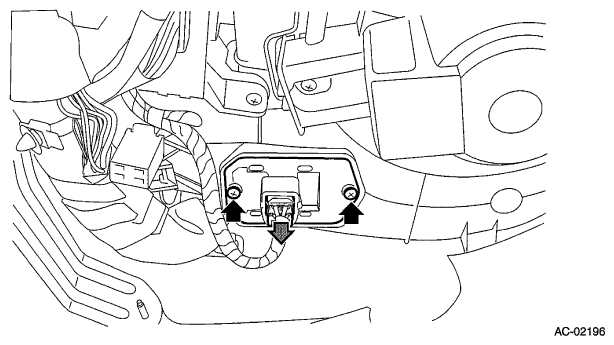

      Fig 2: Disconnecting Blower Resistor Connector
      G06652942Courtesy of SUBARU OF AMERICA, INC.
