Blower Motor: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the clips, and remove the glove box under cover.
    Fig 1: Identifying Glove Box Under Cover Clips
    G06653124Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the blower motor.
    1. Disconnect the connector.
    2. Remove the screw and remove the blower motor.

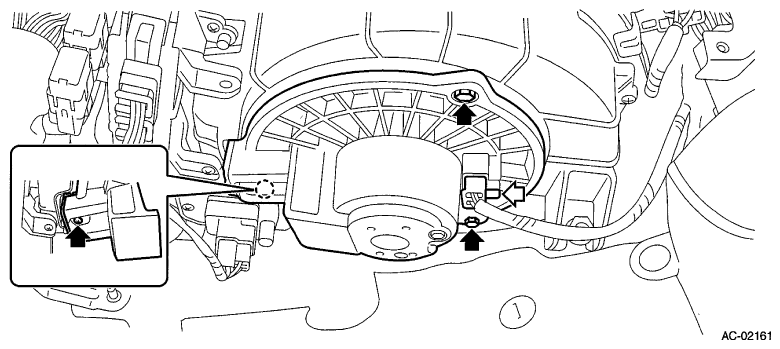

      Fig 2: Locating Blower Motor Screws
      G06652937Courtesy of SUBARU OF AMERICA, INC.
