Ambient Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the grille bracket. (Sedan model)
    NOTE: To prevent damage to the grille bracket, make sure to remove all clips.

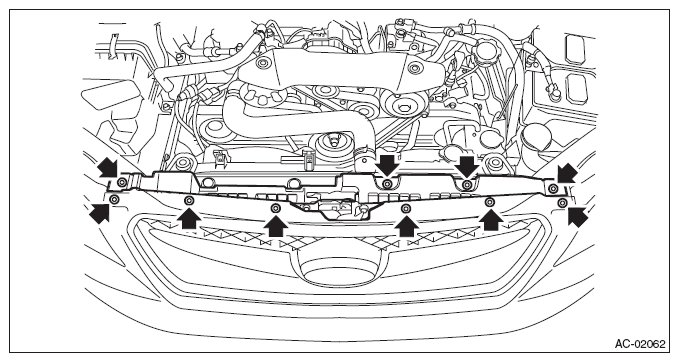

    Fig 1: Locating Grille Bracket Clips
    G07914468Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ambient sensor.
    1. Disconnect the connector.
    2. Remove the ambient sensor from the radiator lower panel.
      Fig 2: Removing Ambient Sensor
      G06652993Courtesy of SUBARU OF AMERICA, INC.
