Passenger's Seat

  1. Remove the glove box. Refer to REMOVAL .
  2. Remove the nuts, and remove the engine control module (ECM).

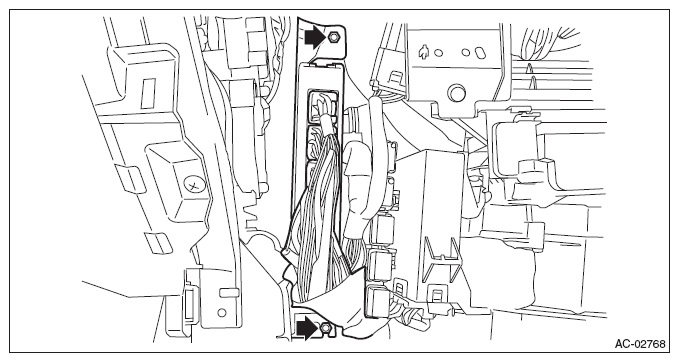

    Fig 1: Locating Engine Control Module Nuts
    G08348756Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air mix door actuator.
    1. Disconnect the connector.
    2. Remove the screw, and remove the air mix door actuator.

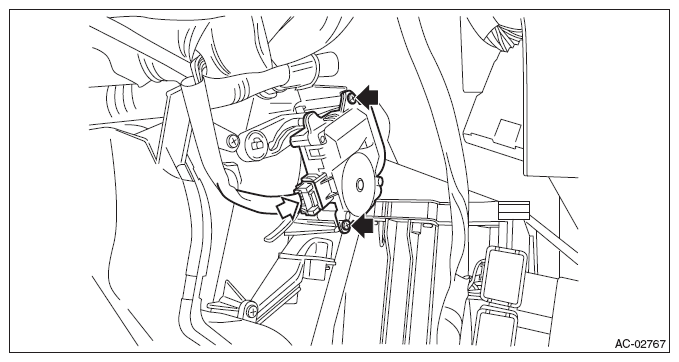

      Fig 2: Disconnecting Air Mix Door Actuator Connector
      G08348757Courtesy of SUBARU OF AMERICA, INC.
