HVAC System (Auto Ac) (Diagnostics): Electrical Component Location: Location: Compartment

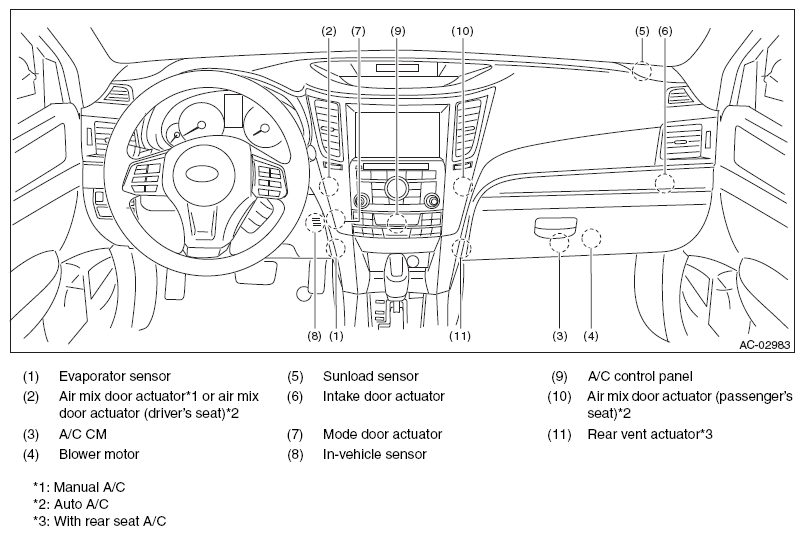

Fig 1: Electrical Components Location (Passenger Compartment)

G08583934

Courtesy of SUBARU OF AMERICA, INC.
