Transfer Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Refer to REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Refer to REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Refer to REMOVAL .
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear and center differential as a unit.
    Fig 1: Identifying Transfer Driven Gear And Center Differential
    G06652310Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bearing outer race from the extension case and transfer case.

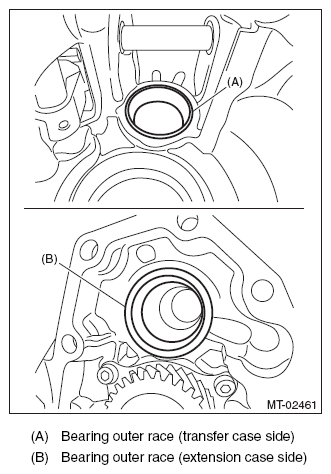

    Fig 2: Identifying Bearing Outer Race
    G08581982Courtesy of SUBARU OF AMERICA, INC.
