Back-Up Light And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake boot assembly. Refer to REMOVAL .
  3. Disconnect the connector back-up light switch & neutral position switch.

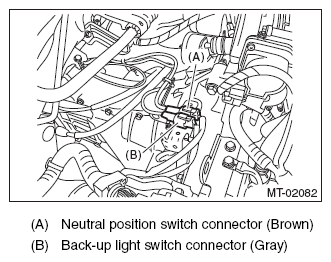

    Fig 1: Identifying Back-Up Light Switch & Neutral Position Switch Connector
    G08581945Courtesy of SUBARU OF AMERICA, INC.
  4. Lift up the vehicle.
  5. Remove the back-up light switch & neutral position switch with the harness.

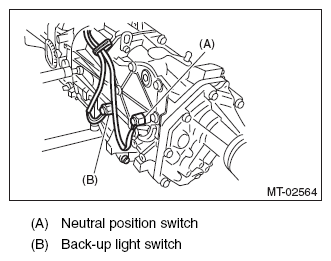

    Fig 2: Identifying Back-Up Light Switch & Neutral Position Switch
    G08581946Courtesy of SUBARU OF AMERICA, INC.
