Back-Up Light Switch & Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.
  1. Install the back-up light switch & neutral position switch with the harness.
    NOTE: Use a new gasket.

    Tightening torque:

    32.3 N.m (3.3 kgf-m, 23.8 ft-lb)

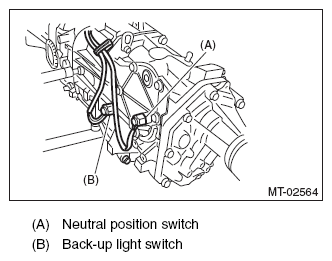

    Fig 1: Identifying Back-Up Light Switch & Neutral Position Switch
    G08581947Courtesy of SUBARU OF AMERICA, INC.
  2. Lower the vehicle.
  3. Connect the connectors of back-up light switch & neutral position switch.
  4. Install the air intake boot assembly. Refer to INSTALLATION .
  5. Connect the battery ground terminal.
